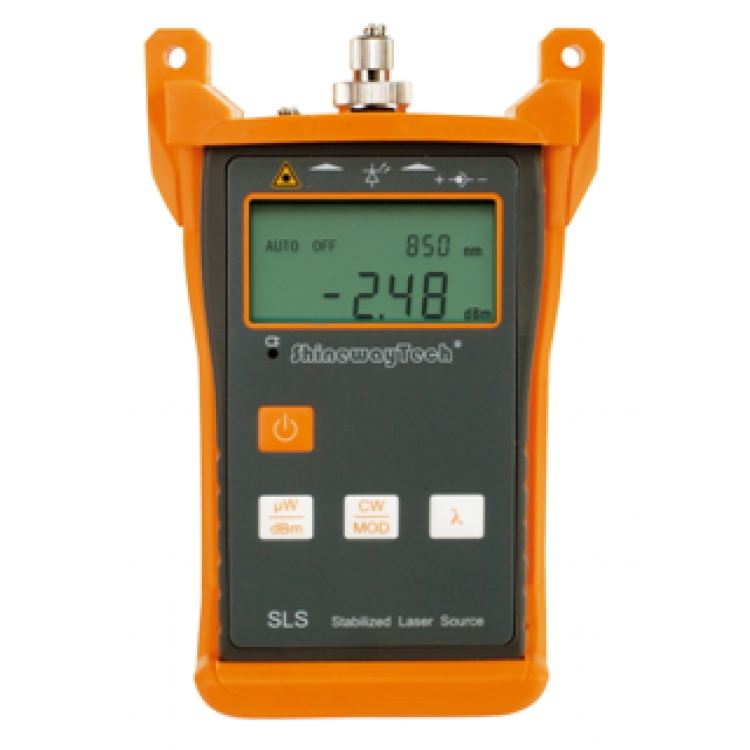

SLS-21/SLS-25 shinewaytech Laser Source

SLS-21/SLS-25 shinewaytech Laser Source

*  Applicable on singlemode/multimode fibers

*  Unique Output Power Display

*  CW/MOD tones output

*  Quick response, no warm-up

*  Interchangeable connectors: FC/SC/ST

*  9V alkaline battery/AC adapter

*  Power saving: Auto-off setting

*  Pocketsize, lightweight and damp-dust-shock proof

*  CE, FCC, FDA certificates



SLS-2X series Stabilized Laser Source paired with ShinewayTech optical power meters can meet the test requirements of fiber identification, attenuation/loss measurements, continuity verification and transmission quality evaluation on singlemode and multimode fibers in LAN/WAN/CATV systems, offering high quality, stability and competitive costs.



SLS-21/SLS-25 shinewaytech Laser Source Specifications

Model	SLS-21			SLS-25
	A-07	A-00	B-07	A-07	A-00	B-00	C-00
Wavelength (±20nm)	1310/1550		850/1300	650/1310/1550		1310/	1310/
						1550/	1490/
						1625	1550
Output Power	≥-7	≥0	≥-7	≥-7 @1310/1550nm ≥-3@650nm	≥0 @1310/1550nm ≥-3@650nm	≥0
Display	LCD
Output Mode	CW, 270Hz,1KHz, 2KHz
Emitter Type	FP-LD
Connector Type	FC/PC(Interchangeable SC,ST)
Spectrum Width	≤ 5nm
Stability	±0.05dB/15min, ±0.10dB/8hr@ 1310/1550; ±0.15dB/8hr@ 850/1300nm
Fiber Type	Multi/Single Mode Fiber
Auto Off	After 5 minutes idle
Power Supply	9V Alkaline battery(450mAh) / optional 9V AC adapter
Battery Life	≥20hours with 9V Alkaline
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 70°C
Relative Humidity	0 ~ 95% (Non-condensing)
Weight	300g (0.66lbs)
Dimensions (H×W×T)	145×75×25mm (5.7×2.9×1inch)

 * Specifications subject to change without notice
