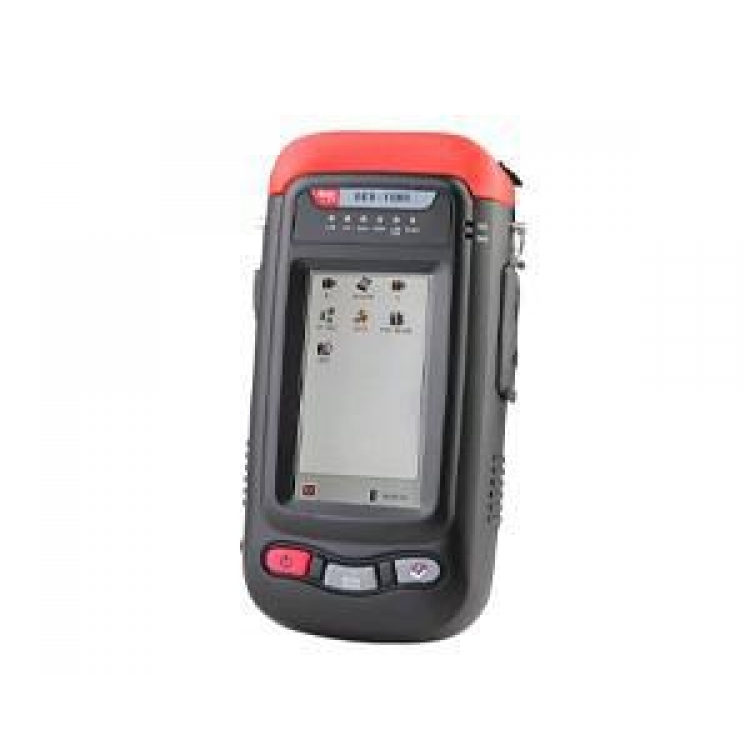

BER-1580Data Transmission Analyzer (This goods is Free shipping, it is not included in the total fee distribution when calculating the distribution amount)

Product overview

While opening 2M circuit, there is a need to judge if the errors and alert index are complied with opening conditions; while dealing with the fault location，there is a need to judge if there is any problem existing in line equipment.
BER-1580 Data Transmission Analyzer developed by DADI Telecom is used by operator in 2M equipment maintenance, troubleshooting and other high-end applications and frame relay service test for the key customers. It can be used for BER testing from  50b/s to 2048kb/s as well as monitoring 2M circuit online, which is the necessary tool for daily network equipment installation, troubleshooting and maintenance. It supports G.703, V.24/RS232, V.35, V.36/RS449, X.21, EIA－530/530A, RS485/RS422 interfaces. BER-1580 also supports 2M jitter send/receive testing, 2M Synchronous Clock testing and frame relay testing. It also supports RJ45 network interface complete TCP/IP, and updating online. Its characteristic remote monitoring function makes it ideal for users to easily perform real-time monitoring to the test unit through certain software under Windows Chinese environmen

The key features：

  The opening and maintenance of 2M circuit
  2M double circuit testing
  Various errors insertion and detection, such as bit ,Code, FAS, CRC
  2M ping testing（PPP/HDLC/Frame Relay）
  2M clock jitter testing
  Large capacity Li-ion battery guarantees more than 8 hours operation without external power source
  Large capacity data storage
  Use PC to perform the remote control of the test set through Ethernet

Product overview

While opening 2M circuit, there is a need to judge if the errors and alert index are complied with opening conditions; while dealing with the fault location，there is a need to judge if there is any problem existing in line equipment.
BER-1580 Data Transmission Analyzer developed by DADI Telecom is used by operator in 2M equipment maintenance, troubleshooting and other high-end applications and frame relay service test for the key customers. It can be used for BER testing from  50b/s to 2048kb/s as well as monitoring 2M circuit online, which is the necessary tool for daily network equipment installation, troubleshooting and maintenance. It supports G.703, V.24/RS232, V.35, V.36/RS449, X.21, EIA－530/530A, RS485/RS422 interfaces. BER-1580 also supports 2M jitter send/receive testing, 2M Synchronous Clock testing and frame relay testing. It also supports RJ45 network interface complete TCP/IP, and updating online. Its characteristic remote monitoring function makes it ideal for users to easily perform real-time monitoring to the test unit through certain software under Windows Chinese environment.

Typical applications

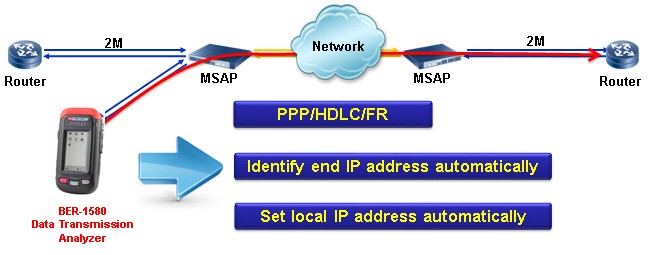

 Leased line circuit fault interface diagnosis—E1 ping testing

 2M Circuit Opening- E1 Off-line loopback testing

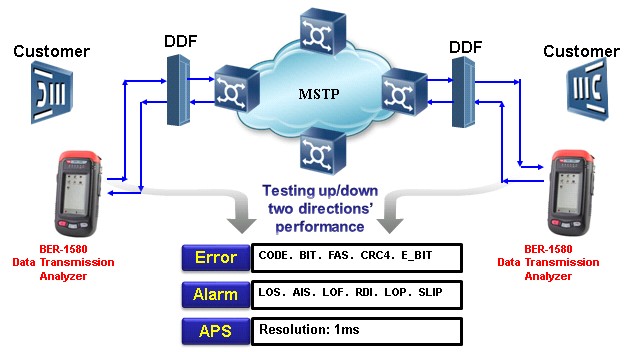

 2M Circuit Opening—E1 offline end-to-end testing

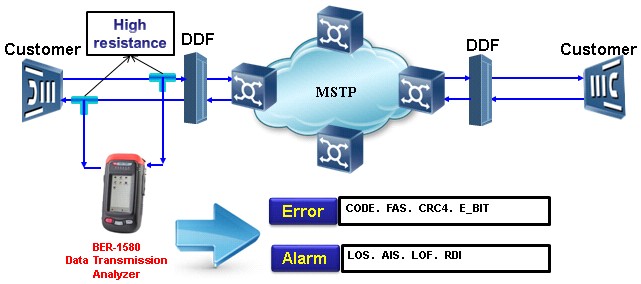

  Network maintenance—E1 online testing

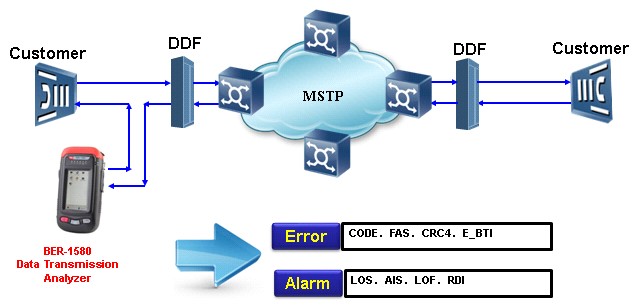

 Network maintenance—E1 pass through test

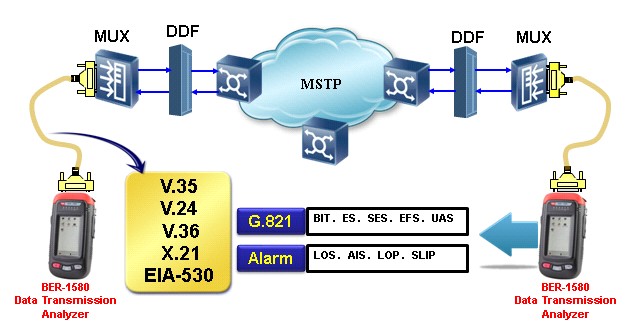

 Network maintenance—V series interfaces testing

 Signal quality testing—E1/T1 pulse template

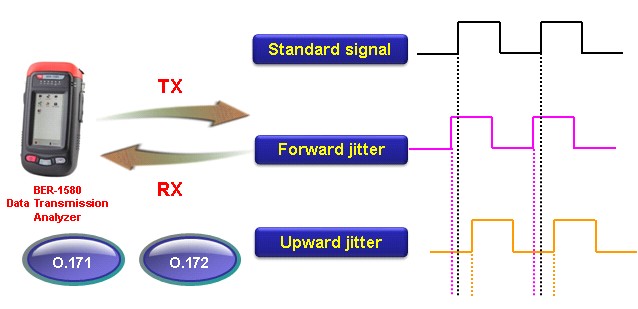

 Signal quality testing — jitter testing

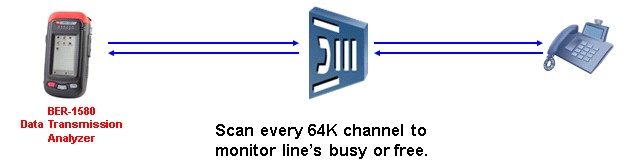

 Test occupied channel—Voice Monitoring

 Test equipment A/D transfer ability—Audio Testing

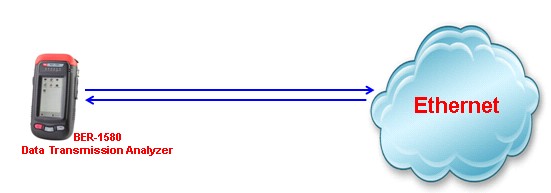

 Verify Ethernet Connectivity—Ping testing

Functional specifications

 E1 interface testing
  l Defects and abnormal: Out of service or in-service testing，error characteristics testing
  l Loop delay: Precision reaches 1us
  l Switch time: The time of switching from the main channel to standby channel
  l Audio testing: Test if there is problem, such as distortion, etc, existing in PCM or SPC while stimulating the conversion between voice signal and digital signal
  l Voice monitoring: Scan channel to confirm the busy of 64Kchannel, monitoring line which is being used
  l Pulse mask: Test if the E1 waveform satisfy G.703 standard
  l E1 jitter Rx/Tx testing: E1 signal jitter testing, it can perform jitter on send end
 Ethernet testing
  l PING: judge connectivity
 V Series Interfaces Testing
  l Defects and abnormal: Out of service or in-service testing, error characteristics testing
  l PING: PING router, PPP/HDLC/FR protocol
 T1 testing
  l Defects and abnormal: Out of service or in-service testing, error characteristics testing
  l Pulse mask: Test if the E1 waveform satisfy G.703 standard

Main indicators
