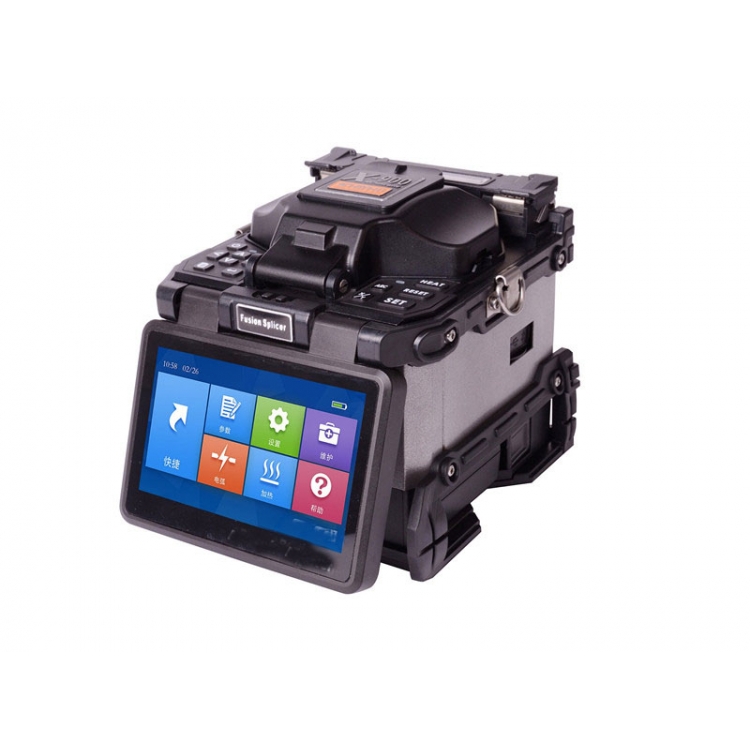

X-900 Fusion Splicer

 X-900 Fusion Splicer

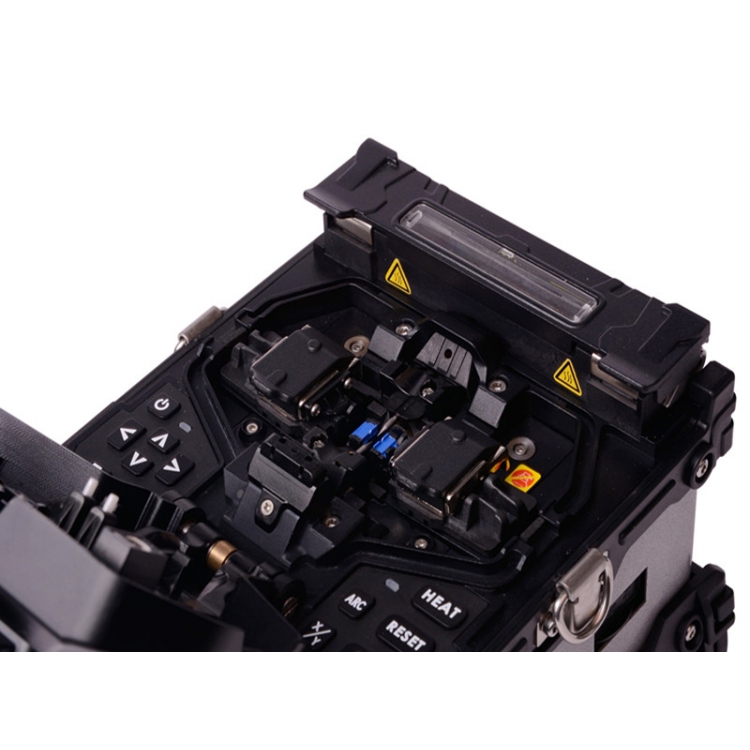

*6 motors accurate core to core alignment

*Automatic fiber type identification

*6s stable splicing & 16s fast heating

*Automatic & real-time ARC calibration

*Bluetooth remote assistance system

*Upgraded CPU with 30% power saving

*Real-time heating temperature monitoring

*Anti-shock, Anti-dust and waterproof

*Apply to bare fiber, patch cord,drop cable, etc.

Specifications

Applicable fiber	SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657)
Applicable fiber	SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655)
Diameter of cladding	80 -150μm
Diameter of coating	160 – 900μm
Typical splice loss	SM:0.02dB, MM:0.01dB, DS:0.04dB, NZDS:0.04dB
Return loss	>60db
Fiber cleaved length	10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )
Splicing program	40 groups
Operate mode	Manual, Automatic
Auto-heating	Available
Typical splicing time	6 seconds
Tube heating time	16 seconds for 60mm and 40mm shrinkable sleeves
Fiber view magnification	250X(X or Y view), 125X(X and Y view)

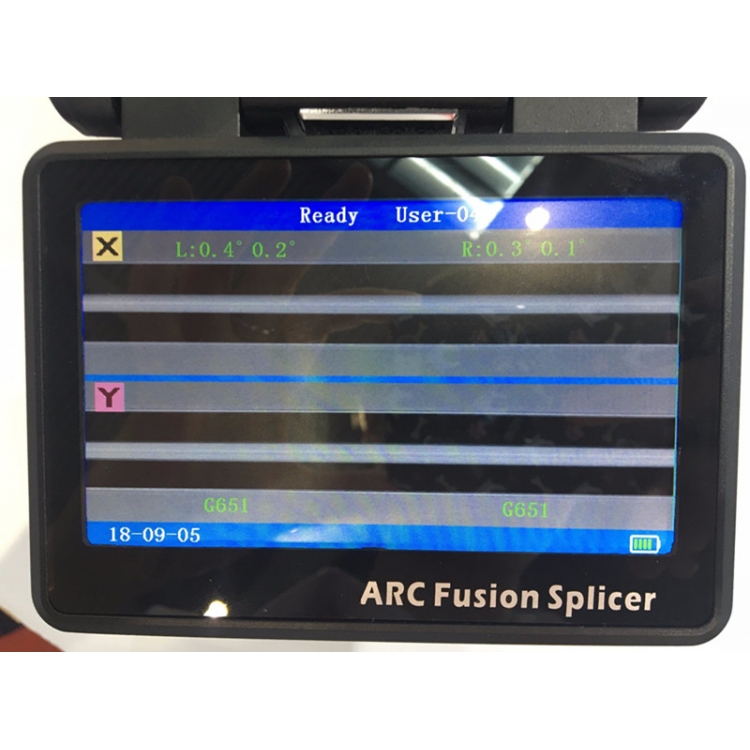

Viewing method and display	2 CMOS cameras, 5.0 inch color LCD monitor
Storage of splice result	4000 results
Loss evaluation	Available
Tension test	1.8-2.2N
Interface	GUI menu interface, easier operation
Battery capacity	5200mAh Li-battery, typical 250 cycles(splicing and heating),support independent charging
Power supply	Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
Electrode life	More than 4000 ARC discharges, can be replaced conveniently
Terminals	USB 2.0 port, for uploading splice results and upgrading software
Operating condition	Altitude: 0-5000m, Humidity: 0-95%, Temperature: -25℃～+50℃;Wind speed: max 15m/s
Dimension	160mm(L)x136mm(W)x140mm(H)
Weight	2.2kg including battery

Packages

Applicable fiber	SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), others(including G.657)
Applicable fiber	SM(ITU-T G.652),MM(ITU-T G.651),DS(ITU-T G.653),NZDS(ITU-T G.655)
Diameter of cladding	80 -150μm
Diameter of coating	160 – 900μm
Typical splice loss	SM:0.02dB, MM:0.01dB, DS:0.04dB, NZDS:0.04dB
Return loss	>60db
Fiber cleaved length	10-16mm (coating diameter< 250μm ), 16mm(coating diameter: 250-1000μm )
Splicing program	40 groups
Operate mode	Manual, Automatic
Auto-heating	Available
Typical splicing time	6 seconds
Tube heating time	16 seconds for 60mm and 40mm shrinkable sleeves
Fiber view magnification	250X(X or Y view), 125X(X and Y view)
Viewing method and display	2 CMOS cameras, 5.0 inch color LCD monitor
Storage of splice result	4000 results
Loss evaluation	Available
Tension test	1.8-2.2N
Interface	GUI menu interface, easier operation
Battery capacity	5200mAh Li-battery, typical 250 cycles(splicing and heating),support independent charging
Power supply	Adaptor, input: AC100-240V(50/60HZ),output: DC11-13.5V
Electrode life	More than 4000 ARC discharges, can be replaced conveniently
Terminals	USB 2.0 port, for uploading splice results and upgrading software
Operating condition	Altitude: 0-5000m, Humidity: 0-95%, Temperature: -25℃～+50℃;Wind speed: max 15m/s
Dimension	160mm(L)x136mm(W)x140mm(H)
Weight	2.2kg including battery
