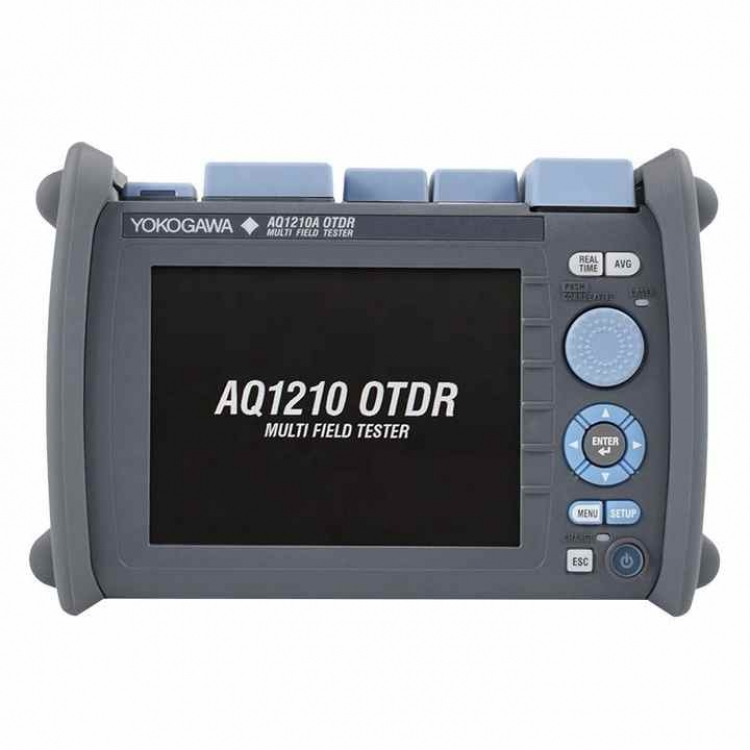

AQ1210A Yokogawa OTDR

AQ1210A Yokogawa Optical Time Domain Reflectometer OTDR ProductsFeatures

Main features of AQ1210 Yokogawa Optical Time Domain Reflectometer OTDR

• Dual operation mode: touch screen combined with hard button, finger tap, slide, zoom or press to operate the instrument screen

• Multitasking: While performing OTDR measurements, you can also confirm the optical power, fiber ID/bending, etc. of other cores.

 • Smart Link Analysis: One-click measurement, complete network features, easy to read reports • Powerful battery life: it can be powered continuously for 10 hours under Telcordia standard conditions

 • Quick start: only 10 seconds from the full shutdown state to the measurement preparation

• Multi-fiber measurement: guides the user to track the measurement of multiple fibers in sequence • High-speed, high-performance real-time measurement: can be selected according to the operating environment: short-time high-speed mode and high-precision mode of waveform

• PDFOTDR view mode: OTDR view can be switched between curves and graphs by simply clicking the icon

• Reporting: Built-in post-processing software for generating OTDR reports in PDF format

 • Advanced curve analysis: including multi-curve analysis, bi-directional curve analysis, curve difference analysis, interval analysis (return loss)

 • Remote Control: Remote

control via a web browser or Wi-Fi or LAN control commands via a smartphone or tablet

 AQ1210A Yokogawa Optical Time Domain Reflectometer OTDR Specification:

item	value
Model Number	AQ1210A
Type	OTDR
Place of Origin	Japan
Brand Name	yokogawa
Use	FTTH
Warranty Time	1 year
Network	bluetooth, wifi, 4g
Dynamic range	37/35dB
Port	USB
Wavelength	1310nm/1550nm±20nm
Display screen	5 .7inch, 240*320 touching scr
Test distance	256km at most
Size	185*116*56MM
Weight	660G
Storage	2 GB internal memory
Report format	PDF
Battery	10hours



Applicable	Wavelength	Dynamic	Model
fiber		range
fiber	1310/1550nm	37/34dB	AQ1210A
SMF	1310/1550nm	42/40dB	AQ1215A
	1310/1550/1625nm	37/37/35dB	AQ1210E
	1310/1550/1625nm	42/40/39dB	AQ1215E
	1310/1550/1650nm	42/40/37dB	AQ1215F
	1310/1550/1650nm	42/40/39dB	AQ1216F

AQ1210AYokogawa OTDR Standard Packaging

Standard Packing for Communication Equipment optical Fiber otdr 37/35 dB Yokogawa AQ1210A  OTDR :

YOKOGAWA AQ1210A otdr (1pc)
Universal connector (1pc)
Testing Report (1pc)
AC/DC adapter (1pc)
Quality certification
Internal Battery (1pc)
User Manual (1pc)
Carrying Case (1pc)



AQ1210AYokogawa OTDR Packaging and delivery

Packaging Details:Each set packed in a standard bag then by carton
Original Yokogawa Smart OTDR AQ1210A

Selling Units:Single item

Single package size:40X30X22 cm

Single gross weight:5.500 kg
