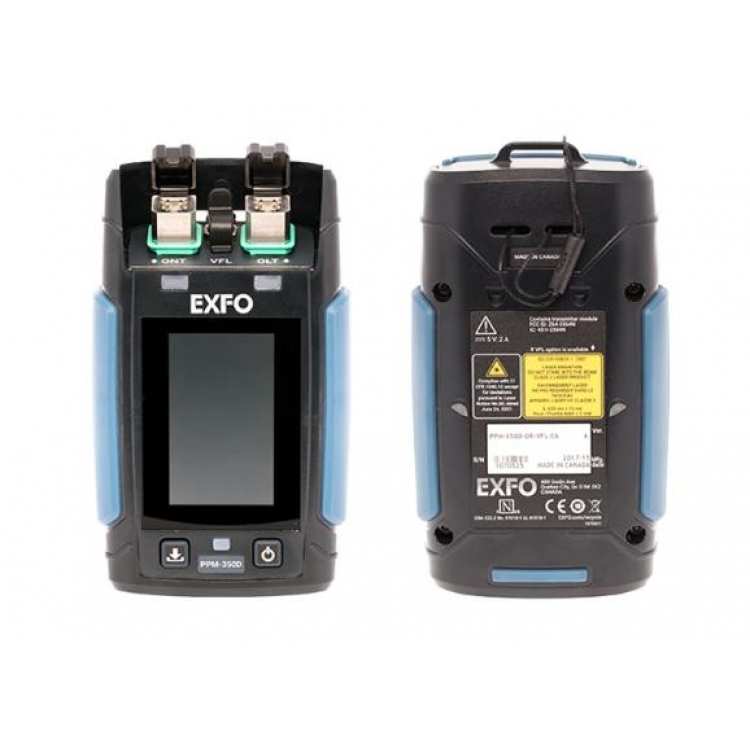

Next:PX1-PRO-H EXFO Optical Power meterPPM-350D EXFO PON Optical Power Meter Product Description
The PPM-350D was designed to tackle both challenges head-on with its unique PON-aware? technology. Developed in partnership with a Tier 1 CSP, the PPM-350D PON Power Meter automatically detects and adapts test parameters for the PON technology in use at the customer premises, eliminating costly guesswork by field technicians. As a result, service providers can deploy faster, cut activation costs and boost customer satisfaction.
PPM-350D-DR PON Power Meter
GPON, 1G/10G EPON, XG/XGS-PON, TWDM NG-PON2, RF video overlay, RFoG
1310/1490nm, 1270/1578nm, 1524 to 1544/1596 to 1603, 1270/1577, 1310 or 1610/1550nm
This intelligent PON power meter automatically detects and adapts test parameters to the PON technology in use at the customer
premises, thanks to its groundbreaking, patented PON-aware™ capability.PPM-350D EXFO PON Optical Power Meter GENERAL SPECIFICATIONS
GENERAL SPECIFICATIONS
Storage capacity
up to 3500 results
Battery autonomy
8 hours of continuous use
Battery charge time
< 2 hours
Display resolution
0.01 dBm
Measurement units
dB, dBm
Dimensions (H x W x D)
154 mm x 88 mm x 41 mm
Display size
69 mm
Weight
420 g
Display type
Reflective
Display pixel count
400 x 240
Operating temperature range
0 °C to 50 °C
Storage temperature range
–40 °C to 70 °C
Connector
USB type C
Connectivity
Bluetooth low energy
Smart device OS compatibility
Android 6 and above, iOS 11 and above
PPM-350D EXFO PON Optical Power Meter Features
Unique PON-aware™ capability automatically detects PON technology in use
Compatible with GPON and EPON networks
Supports 10G-capable PON networks
Pass-through mode for ONT/ONU verifi cation
Bluetooth® and USB connectivity
Smart app to store and share test results, create test reports
Compact, rugged and designed to comply with the IP54 enclosure standard
Rechargeable battery lasts for up to 8 hours of continuous usePPM-350D EXFO PON Optical Power Meter Applications
Single-layer PON service activation
Multi-layer PON service activation
Insertion loss testing
Multiple PON technologies supported on a single unit:
- GPON (ITU-T G984.2)
- EPON (IEEE 802.3)
- XG(S)-PON (ITU-T G987.2)
- TWDM NG-PON2 (ITU-T G989.2)
- RF overlay
- RFoG (ANSI/SCTE 174 2010).PPM-350D EXFO PON Optical Power Meter Standard Package
STANDARD ACCESSORIES INCLUDED
Instruction manual (soft copy)
Certificate of calibration (hard copy)
GP-2269: USB-A to USB-C cable
GP-2227: USB AC adapter
GP-2275: Wrist strap
GP-2274: Protective cover for optical ports
GP-2277: Rechargeable battery
GP-10-071: Soft carrying case
PPM-350D EXFO PON Optical Power Meter THREE PON OPTIONS
PPM-350D-SR
PPM-350D-D
PPM-350D-DR
GPON (ITU-T G984.2)
√
√
√
1G EPON (IEEE 802.3)
√
√
√
XG/XGS-PON (ITU-T G987.2)
√
√
TWDM NG-PON2 (ITU-T G989.2)
√
√
10G EPON (IEEE 802.3
√
√
RF video overlay
√
√
RFoG (ANSI/SCTE 174 2010)
√
√
