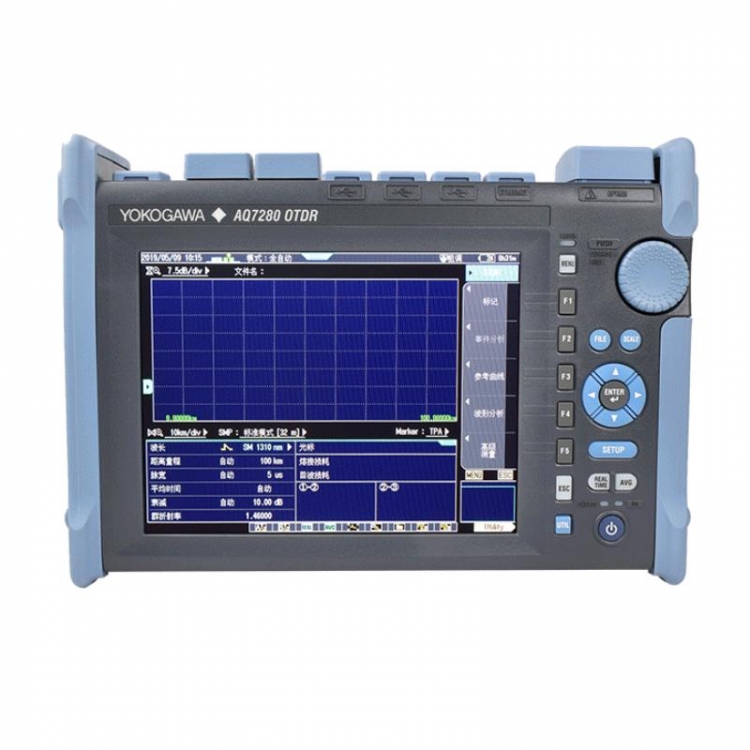

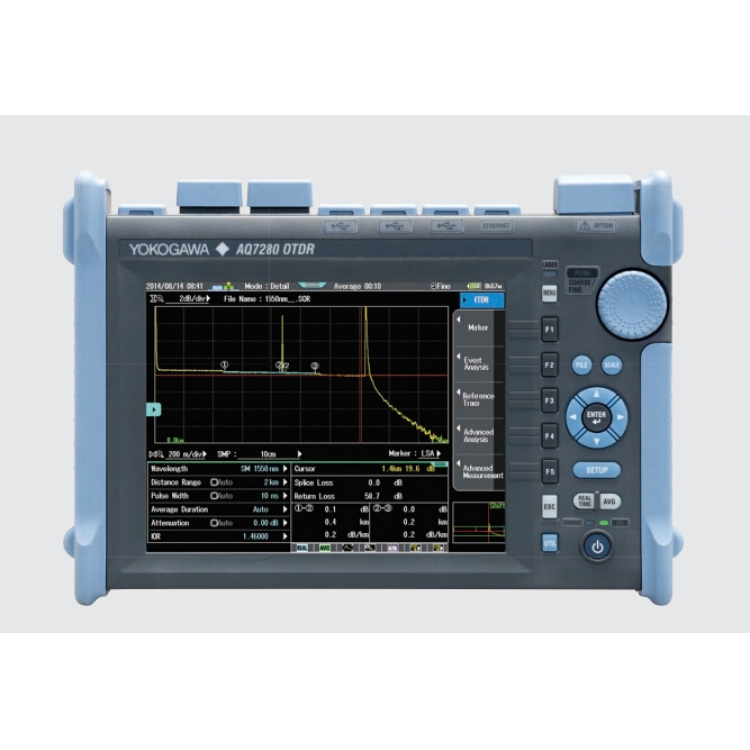

AQ7280 Yokogawa OTDR

AQ7280 Yokogawa OTDR Products Description

AQ7280 Series have the industry's best 8.4 inches capacitive touch screen, support, and smart phones and other handheld devices with the same multi-touch function that allows users to locate and adjust the image size on the screen visually. AQ7280 Series models also have the same operation until the hard keys. Users can choose to use the touch screen or physical keys.



AQ7280 series consists of nine models, including AQ7285A and AQ7283K. AQ7285A has industry-leading 50dB dynamic range, suitable for long distance measurement, and AQ7283K measure up to four different wavelengths. As a modular measurement unit, the user can change the measurement module in the field, which makes the AQ7280 series with unparalleled flexibility and convenience. By replacing the measuring unit, AQ7280 series can be flexibly due to new measurement of optical communication technology development needs arising.

AQ7280 Yokogawa OTDR Specification:

Applicable	Wavelength	Dynamic	Model
fiber		range
fiber	1310/1550nm	38/36dB	AQ7282A
SMF	1310/1550nm	42/40dB	AQ7283A
	1310/1550nm	46/45dB	AQ7284A
	1310/1550nm	50/50dB	AQ7285A
	1310/1550 Filtered with 1650nm	42/40/40dB	AQ7283F
	1310/1550/1625nm	42/40/39dB	AQ7283H
	1310/1550/1625nm	46/45/44dB	AQ7284H
	1310/1490/1550/1625nm	42/38/40/40dB	AQ7283K
MMF	850/1300nm	25/27dB	AQ7282M

AQ7280 Yokogawa OTDR Standard Packaging

Standard Packing for Communication Equipment optical Fiber otdr 38/36 dB Yokogawa AQ7280 otdr :

YOKOGAWA AQ7280 otdr (1pc)
Universal connector (1pc)
SM Fiber Optic Patch Cord FC-SC 1M
Testing Report (1pc)
AC/DC adapter (1pc)
Quality certification
Trace analyzing software(CD) (1pc)
Internal Battery (1pc)
User Manual (1pc)
Carrying Case (1pc)
