OPM-15A Optical Power Meter (This goods is Free shipping, it is not included in the total fee distribution when calculating the distribution amount)

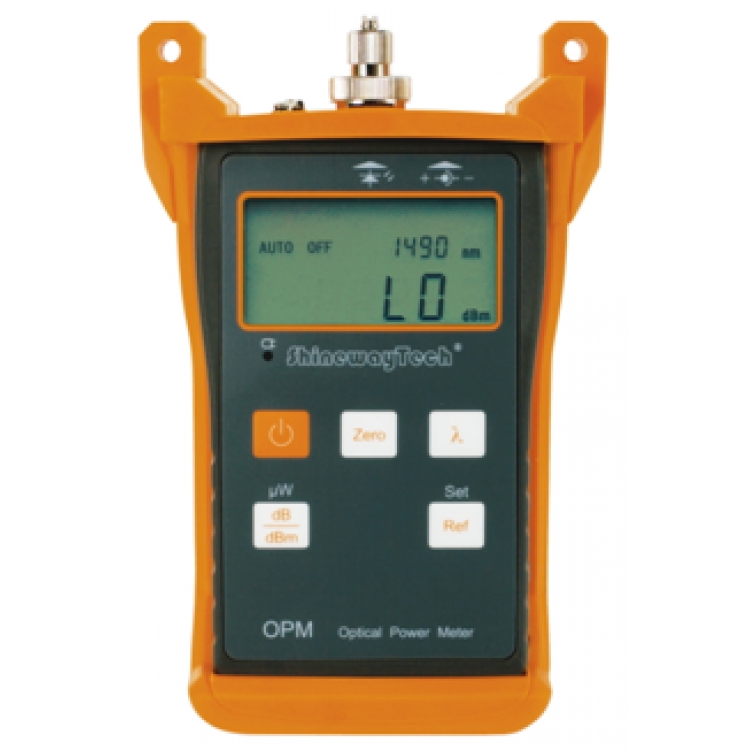

OPM-15/25 Optical Power Meter



  Applicable on singlemode/multimode fibers

  Microprocessor & linear amplifier ensure long-time accuracy

  Quick response, no warm-up

  Interchangeable connectors: FC/SC/ST

  Dual-way power supply: 9V alkaline battery/AC adapter

  Pocketsize, lightweight and damp-dust-shock proof

  Power saving: Auto-off setting

  MOD tones detection

  Display Units: dB/dBm/mW/μW/W

  PC software for data upload and reporting (OPM-25 only)

  CE, FCC Certificates



OPM-15/25 series Optical Power Meter paired with ShinewayTech SLS series Stabilized Laser Source can meet general test requirements of fiber identification, attenuation/loss measurements, continuity verification and transmission quality evaluation on singlemode and multimode fibers in LAN/WAN/CATV infrastructure. OPM-15/25 is ideal for both lab and field applications offering high quality, high stability and competitive low costs.



Specifications

Model	OPM-15		OPM-25
	A	B	A	B
Calibrated Wavelength(1)	850,1300,1310,1490,1550,1625nm
Power Range (dBm) (2)	-70~+10	-50~+27	-70~+10	-50~+27
Application Range	Single/Multimode fibers
Detector Type	InGaAs
Accuracy	For power range of -70 ~ +10: ±5%±0.01nW(±0.5dB@850nm)
	For power range of -50 ~ +27 & -55 ~ +17: ±5%±1nW(±0.5dB@850nm)
Resolution	0.01dB
MOD Identification	270,1K,2K Hz
Display Unit	W/mW/μW/dBm/dB (REF)
Connector (3)	FC (Interchangeable SC, ST)
Data Storage	N/A		3200 records
Connectivity	N/A		RS-232
Power Supply	9V Alkaline Battery(450mAh) / Optional 9V AC Adapter
Battery Life	≥40hours
Power Saving	Auto off after 5 minutes idle
Operating Temperature	0ºC ~ 50ºC (32 ~ 122 F)
Storage Temperature	-20ºC ~ 70ºC (-4 ~ 158 F )
Relative Humidity	0 ~ 95% (Non-condensing)
Weight	300g (0.66lbs)
Dimensions (H×W×T)	145×75×25mm (5.7×2.9×1inch)

Note: (1) Other wavelengths and power ranges are open for customization;

            (2) For Model A at 850nm, the lower limit of measurement range is -60dBm (Model A) / -40dBm (Model B);
            (3) OPM models with Ф1000μm detector are available with: FC/SC/ST/DIN/E2000/LC/Universal 1.25mm/Universal 2.5mm connectors.
 * Specifications subject to change without notice
