OLP-87P XG-PON VIAVI PON Optical Power Meter

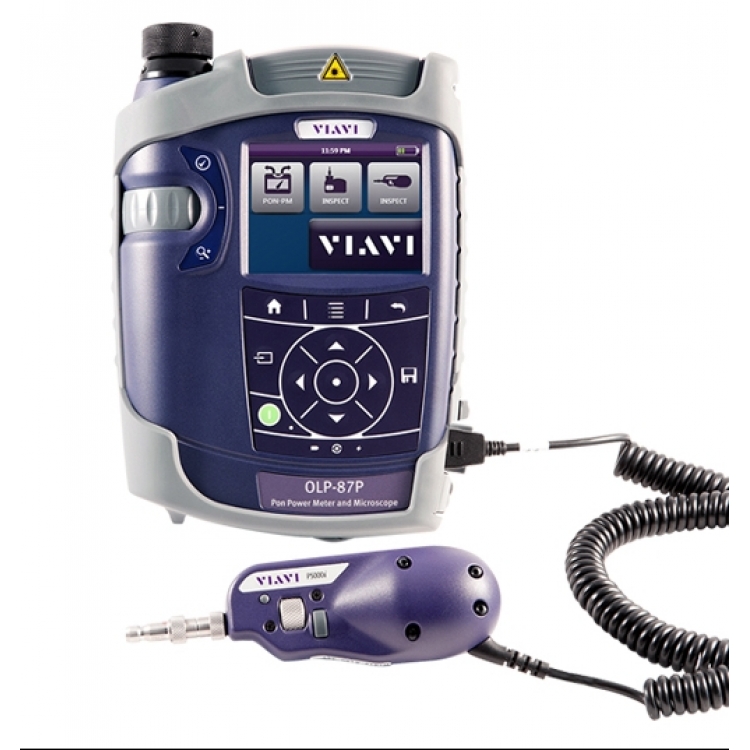

SmartClass OLP-87P VIAVI  PON Optical Power Meter Product Description

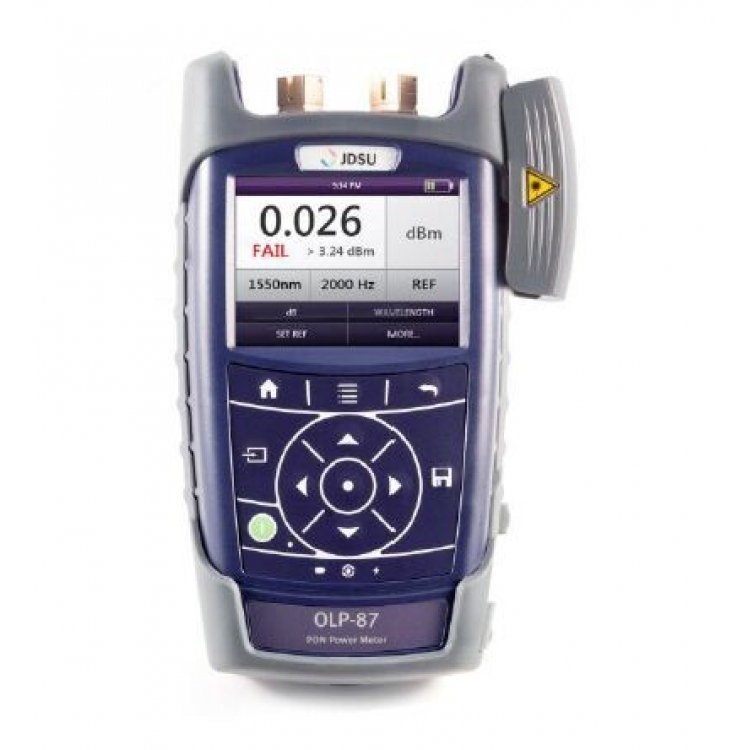

The OLP-87 is an FTTx/PON power meter for use in activating and troubleshooting B-PON, E-PON and G-PON and next generation high speed 10G PON such as XG-PON and 10G-EPON networks, and higher capacity NG-PON2 networks. The OLP-87 combines a high-performance wavelength-selective power meter with pass/fail fiber inspection analysis capability into one portable solution.

OLP-87P VIAVI  PON Optical Power Meter Features

*Integrates fiber inspection and test for an efficient easy-to-use solution that promotes best practices for handling fiber.

*Easily measures PON power and automatically certifies fiber-end face condition

*Generates certification report that prove that work quality meets industry standard or customer specifications

*Burst mode measurement for 1270nm, 1310nm and 1535nm upstream signals

*Hands-free carrier for easy use inside homes or up on telephone poles

*Future proof, supports co-existence of PON services, e.g. deploying XG(S)-PON and/or NG-PON2 on existing G-PON networks

OLP-87P VIAVI  PON Optical Power Meter Specification

Technical Specifications
Power (1,2)	B/G PON	NG PON2 (TWDM)	RF Video
Upstream (3) Meas. Range / max input Spectral passband	1310 nm -40 to +13 / +17 dBm 1260 to 1360 nm	1535 nm -40 to +13 / +17 dBm 1500 to 1620 nm
Downstream Meas. Range / max input Spectral passband	1490 nm -40 to +13 / +15 dBm 1450 to 1500 nm	1600 nm 40 to +26 / +27 dBm 1585 to 1625 nm	1550 nm 40 to +26 / +27 dBm 1535 to 1565 nm
Measurement uncertainty	±0.5 dB (2,4)
Pass    through insertion loss	<1.5 dB (2)
ORL	>60 dB
Calibrated wavelengths	1310/1490/1550/1625 nm
