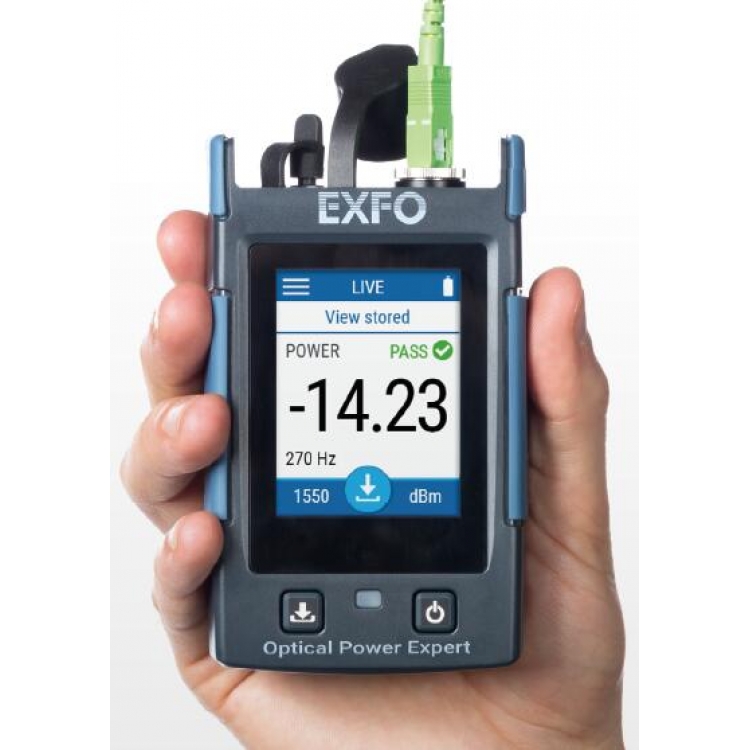

PX1-H EXFO Optical Power meter (This goods is Free shipping, it is not included in the total fee distribution when calculating the distribution amount)

PX1-H EXFO Optical Power meter Key features

Connect to smart app via Bluetooth: field data reporting, cloud storage, workflow management

User-friendly: compact, color touchscreen and intuitive GUI

Robust and rugged: IP54 design for dust and water protection

Time-saving features: no offset nulling, lightning-fast boot-up

High-capacity internal data storage

PX1-H EXFO Optical Power meter OTDR Specification:

CONFIGURATIONS	PX1
Model	PX1-S	PX1-H
Power measurement range (dBm)	+10to-70	+26 to-50b
Power uncertainty	±5%
Measurement units available	dB, dBm, Watt (W,mW, nW, pW)
Wavelength measurement range (nm)	830 to 1625
Callibrated wavelengths (nm)	11 calibrated wavelengths:830,850,980,1300,1310, 1450,1490,1550,1577,1590,1625
Auto-wavelength recognition	No
Auto-wavelength switching	No
Wavelength bundles	No
Visual fault locator	No
Tone detection	270 Hz, 330 Hz,1 kHz,2kHz1

3-year warranty and calibration interval

PX1-H EXFO Optical Power meter GENERAL SPECIFICATIONS

Dimension 133 mm x 78 mm x 30 mm (54 in x 3 in x 1 1/ in)

Display size 71 mm (2.8 in)

Weight (with battery) 225g (0.5 lb)

Display type Color display with capacitive touchscreen

Interface languages Chinese (Simplified and Traditional), English, French, German,Russian,Spanish

Battery charging USB Type C charging port connector<3 hours charging time, when unit is off

AC/DC charger/adapter input:~100-240V; 50/60 Hz; 1.0 A max, output:.-5V;2 A

Battery autonomy 10 h (continuous use)

Interfaces Bluetooth 5.0 with BLE

USB Type C

Storage capacity 1000 test results for local reading

Reporting Two methods available:

·Connect PX1 to smartphone via Bluetooth. Generate and share PDF reports via EXFO application..Transfer results to a PC via USB cable and generate reports with FastReporter software.

Warranty 3 years

Calibration interval 3 years

Temperature Storage" -40℃ to 70 ℃(-40F to 158F)

Operating -10℃ to 50 ℃ (14F to 122F)

PX1-H EXFO Optical Power meter ACCESSORIES

 Carrying pouches

GP-2267 Soft pouch carrying case

Wrist strap

GP-3157 Wrist strap

Power adapters

GP-2227 USB AC adapter (includes interchangeable plugs for North America, Europe,UK and Australia)

GP-2269 USB-A to USB-C cable

Battery

GP-2295 Rechargeable battery

Connectors adapters

FOAS-22 FC connector adapter

FOAS-32 ST connector adapter

FOAS-54 SC connector adapter

FOAS-96B E-2000 connector adapter

FOAS-98 LC connector adapter

FOAS-U12 Universal 1.25 mm connector adapter (suitable for 1.25 mm ferrule connectors including LC,MU)

FOAS-U25 Universal 2.5 mm connector adapter (suitable for 2.5 mm ferrule connectors including SC,FC,ST,E2000)

GP-1008 VFL adapter for 1.25 mm ferrule

Included accessories—PX1 EXFO Optical Power meter

• Calibration certificate

• GP-2295—Rechargeable battery

• FOAS-U25—Universal 2.5 mm connector adapter a

• GP-2269—USB cable (compatible with any AC USB charger)

Included accessories—PX1-PRO EXFO Optical Power meter

• Calibration certificate

• GP-3157—Wrist strap

• GP-2295—Rechargeable battery

• FOAS-U25—Universal 2.5 mm connector adapter a

• GP-2269—USB cable (compatible with any AC USB charger)

• GP-2227—USB AC adpater

• GP-2267—Soft carrying pouch
