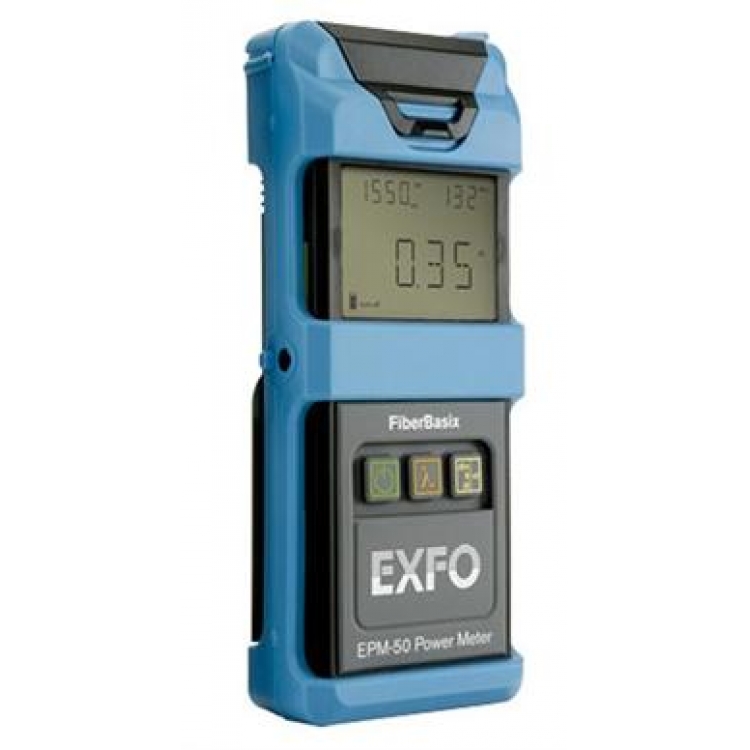

EPM-53 Optical Power Meter (This goods is Free shipping, it is not included in the total fee distribution when calculating the distribution amount)

EXFO EPM-50 Series Power Meter Key features:

- Rugged design
- Interchangeable connector adapters
- 300 hours of battery life
- Tone recognition for ½ ber ½ cation
- Universal push-pull interface
- Reference function for direct loss measurements

APPLICATIONS:
- High power model for CATV and Telco applications
- Enterprise/LAN for singlemode and multimode
measurements


SPECIFICATIONS
MODEL	EPM-53	EPM-53X
Power meter port:	InGaAs	InGaAsX
Power range (dBm)	10 to –60	26 to -50
Number of calibrated wavelengths	850,1300,1310,1490,1550	850,1300,1310,1490,1550
Power uncertainty	5 %	5 %
Resolution (dB)	0.01	0.01
Display units	dB/dBm/W	dB/dBm/W
Tone detection (Hz)	270, 1 k, 2 k	270, 1 k, 2 k
Battery life (hours)	>300	>300
Warranty (year)	1	1
GENERAL SPECIFICATIONS
Size (H x W x D)	189 mm x 78 mm x 37 mm m (7 7/16 in x 3 1/16 in x 1 7/16 in)
Weight	0.4 kg (0.9 lb)
Temperature operating	-10C to 50C (14F to 122F)
storage	-40C to 70C (-40F to 158F)
Relative humidity	0 % to 95 % non-condensing
