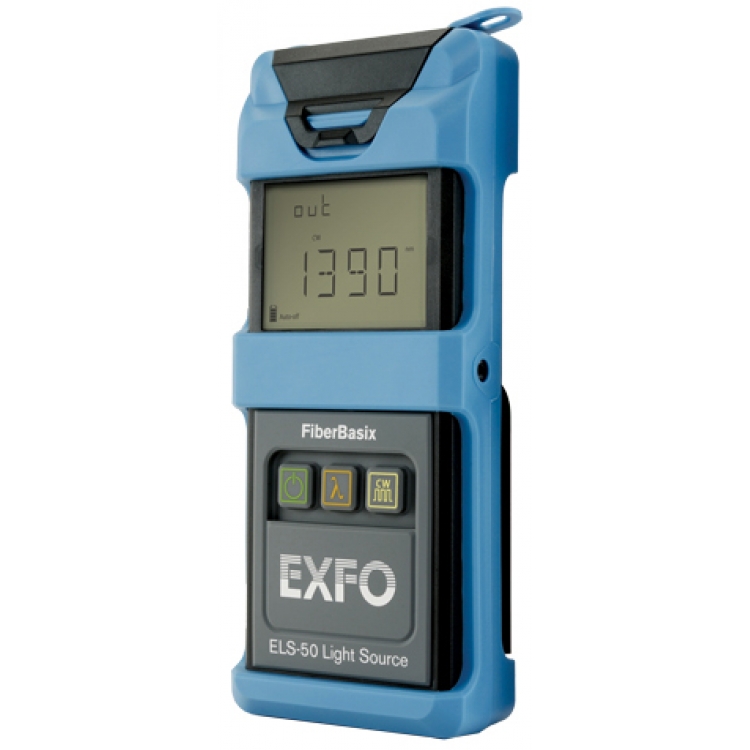

ELS-50 EXFO Light Source

EXFO ELS-50 Series Light Source Features:

Rugged design

Excellent power stability for reliable loss measurements

Interchangeable connector adapters

Up to 60 hours of battery life

Tone generation for fiber identify cation



APPLICATIONS:

Telco/CATV and FTTH models; dual and triple wavelenghts

Enterprise/LAN models; singlemode and multimode



SPECIFICATIONS
MODEL	23BL	235BL	12C
Central wavelength (nm)	1310 ± 20 1550 ± 20	1310 ± 20 1490 ± 10 1550 ± 20	850 ± 25 1300 +50/–10
Spectral width (nm)	≤5	≤5	≥40/120
Output power (dBm)	≥–5	≥–5	≥–24(50/125 um)
Power stability (dB)	±0.10	±0.10	±0.10
Battery life (hours)	60	60	45
Tone generation (Hz)	270, 1 k, 2 k	270, 1 k, 2 k	270, 1 k, 2 k
Warranty (year)	1	1	1



GENERAL SPECIFICATIONS
Size (H x W x D)	189 mm x 78 mm x 37 mm (7 7/16 in x 3 1/16 in x 1 7/16 in)
Weight	0.4 kg (0.9 Ib)
Temperature operating	-10C to 50C (14F to 122F)
storage	- 40C to 70C (-40F to 158F)
Relative humidity	0 % to 95 % non-condensing



STANDARD ACCESSORIES

1.Soft pouch

2.LSA-89 FC connector adapter

3.quick reference sticker in 5 languages,

4.Certificate of Compliance
