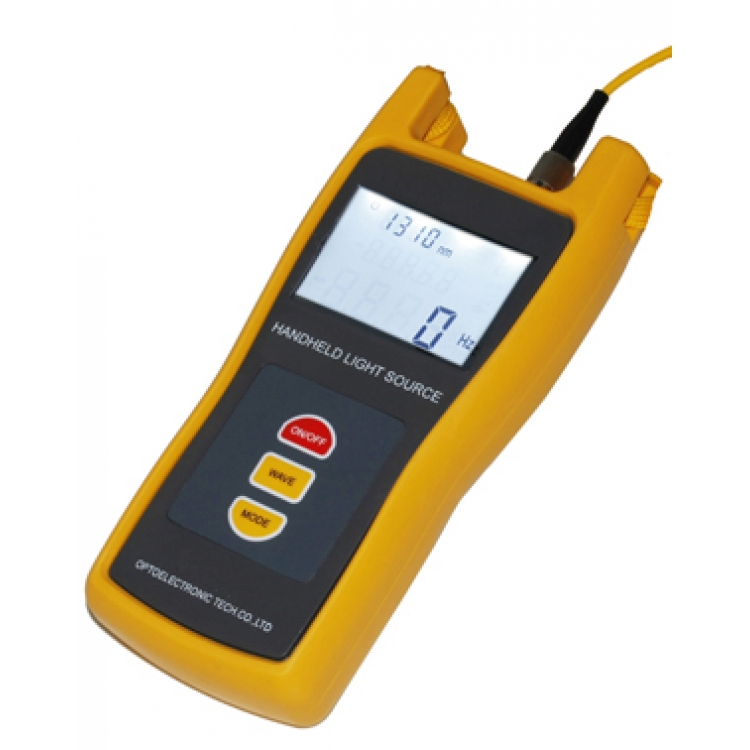

OLS-302 Accumulate credit times Optical Light Source

OLS-302 Accumulate credit times Optical Light Source Features

· Provides 1~4 output wavelengths which can be optional according to customer’s needs

· CW, 2Hz modulation output at 650nm, and CW, 270Hz,1KHz,2KHz modulation output at other wavelengths.

· High stability of the output power

· Stable output wavelength

· Backlight LCD display supports night operation

· Compact size and decent appearance

· Large LCD, easy operation

· Alternative 10 minutes Auto-off function conserving battery life

OLS-302 Accumulate credit times Optical Light Source Specifications

Type	OLS-302
MODEL	OLS-302V	OLS-302 -SM		OLS-302 -MM	OLS-302 -Q1
Wavelengths(nm)	650	1310/1550		850/1300	850/1300/1310/1550
Emitter Type	FP-LD,LED or others please specify
Typical Output Power (dBm)	0	-7dBm for LD, -20dBm for LED
Spectral Width(nm)	≤10
Output Stability	±0.05dB/15mins;  ±0.1dB/ 8hours
Modulation Frequencies	CW,2Hz		CW,270Hz,1KHz,2KHz
Optical Connector	FC/ universal adaptor		FC/PC
Power Supply	Alkaline Battery(3 AA 1.5V batteries)
Battery Operating Time(hour)	45
Operating Temperature(℃)	-10~+60
Storage Temperature	-25~+70(℃)
Dimension	23.5*16*8cm
Weight	0.6kg
Joinwit Recommendation
OLS-302 Accumulate credit times Light Source is designed for optimal use with OPM-302 Optical Power Meter for measuring optical loss on both single mode and multi mode fiber cable.
