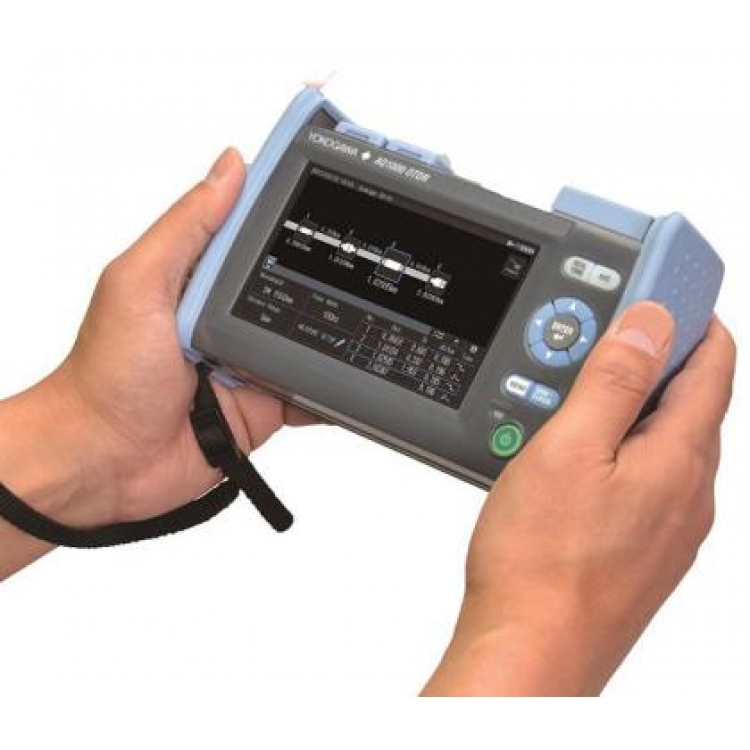

AQ1000 Yokogawa OTDR

AQ7280 Yokogawa OTDR Products Description

The AQ1000 satisfies test and measurement needs in analyzing access optical networks.

The new instrument complements the company’s mid-range AQ1200 Series and the high-end AQ7280 Series, and is specifically designed to increase the productivity of field personnel working on the installation and deployment of optical access networks such as Fiber To The Home (FTTH): the so-called “last mile” to consumers’ premises.

The new instrument complements the company’s mid-range AQ1200 Series and the high-end AQ7280 Series, and is specifically designed to increase the productivity of field personnel working on the installation and deployment of optical access networks such as Fiber To The Home (FTTH): the so-called “last mile” to consumers’ premises.

AQ1000 Yokogawa OTDR Product details

Items	Specifications

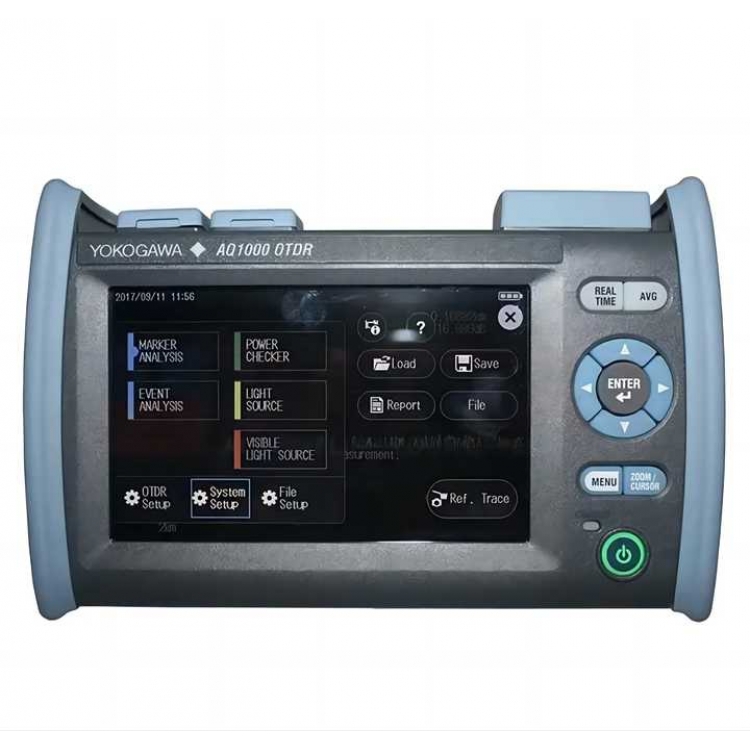

Product name	YOKOGAWA OTDR AQ1000
Wavelength (nm)*4	1310 ±20/1550 ±20
Applicable fiber	SM (ITU-T G.652)
Distance range (km)	0.2, 0.5, 1, 2, 5, 10, 20, 30, 50, 100, 200, 256
Pulse width (ns)	3, 10, 20, 30, 50, 100, 200, 300, 500, 1000, 2000, 5000, 10000, 20000
Sampling resolution	min. 5 cm
Number of sample points	max. 256000
Distance measurement accuracy (m)	±(1 m + Measurement distance × 2 × 10−5 ±1 sampling resolution)
Event dead zone (m)*1	≤ 0.8
Attenuation dead zone (m)*2, *4	4/5
Dynamic range (dB)*3, *4	32/30
Loss measurement accuracy	±0.03 dB/dB
Reflection accuracy	±2 dB
Laser class	Class 1M
Dimensions	185 mm (W) * 116 mm (H) *56 mm (D)
Dimension	5.6 cm (L) * 18.5 cm (W) * 11.6 cm (H)
Weight	0.66Kg
Product Keywords	otdr tester,yokogawa aq1000 otdr,optical time domain reflectometer





AQ1000 Yokogawa OTDR Packaging and delivery

Selling Units:

Single item

Single package size:35.0X28.0X15.0 cm

Single gross weight:5.50 kg
