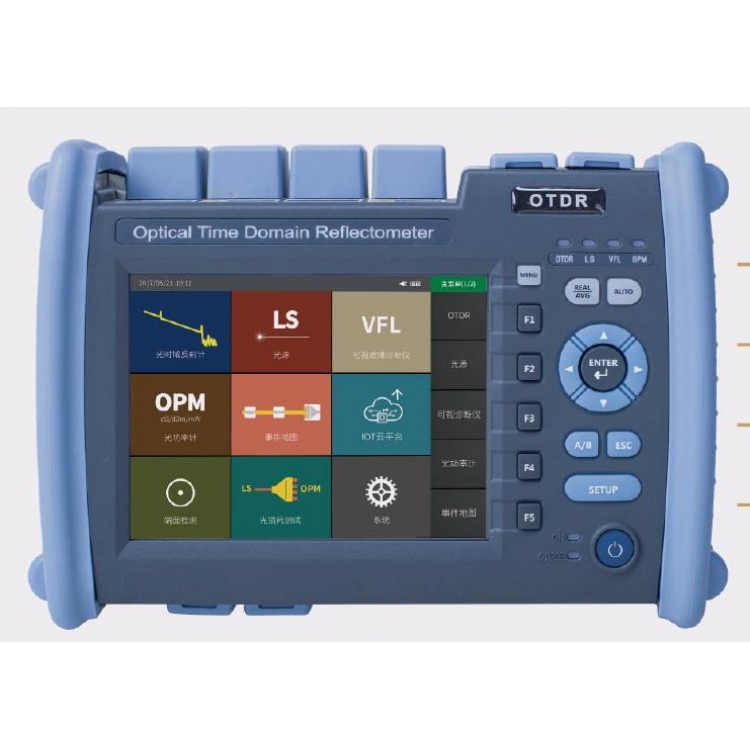

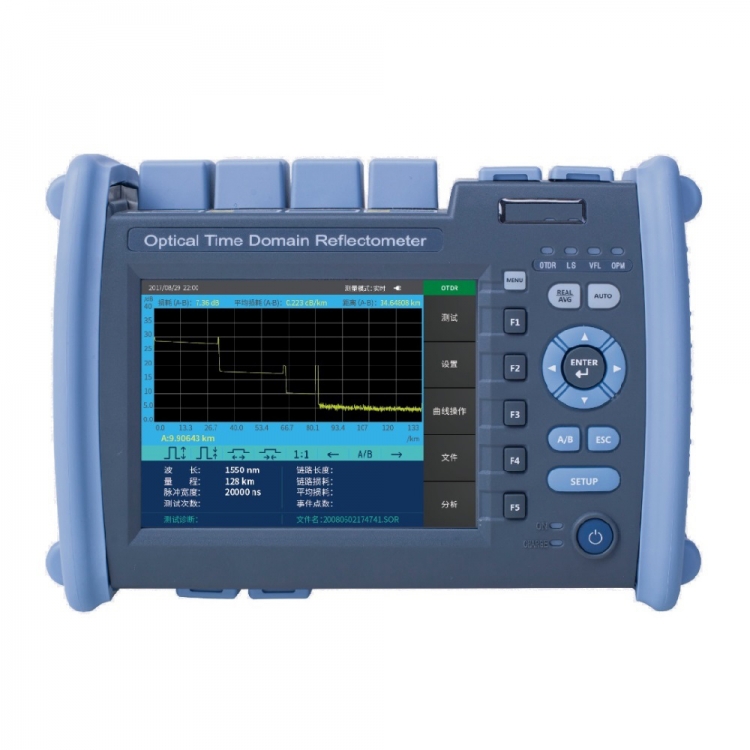

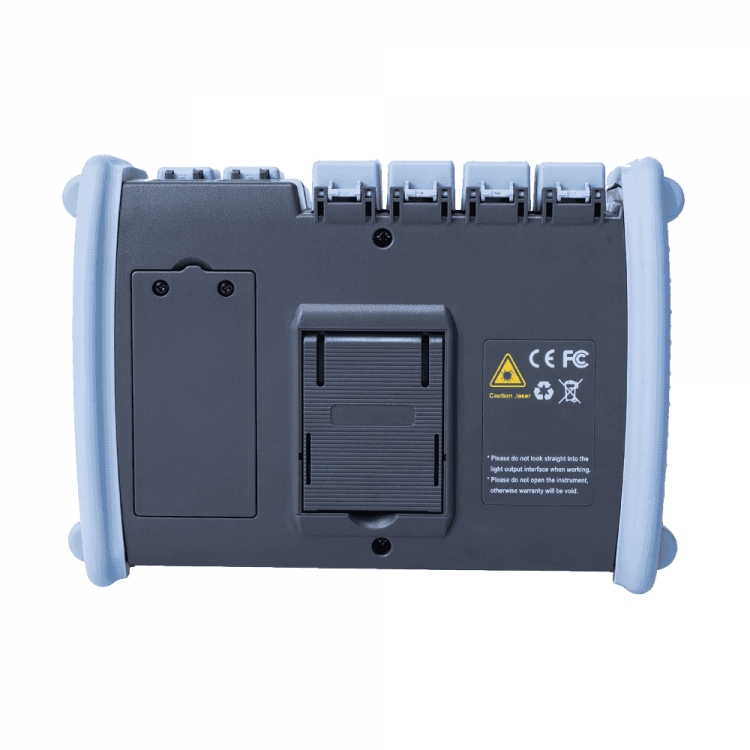

ACTC-2000-SM2 OTDR

ACTC-2000-SM2 OTDR Technical Specifications



Model	ACTC-2000-SM2 OTDR
Type	SM/MM
Wavelength	850nm/1300nm/1310nm/1550nm
Max Dynamic Range	26/28/37/35dB
Event Blind Zone	1m
ATT Blind zone	6m
Test Range	500m/1km/2km/4km/8km/16km/32km/64km/128km/256km
Pulse Width	3ns/5ns/10ns/30ns/50ns/80ns/160ns/320ns/500ns/800ns/1000ns/3000ns/5000ns/8000ns/10000ns/20000ns
Ranging accuracy	±（0.75m+ Sample interval +0.005% ×Test distance）
Loss accuracy	±0.05dB/dB
Sample Points	16k~256k
Sample Resolution	0.05m~ 16m
Reflection Accuracy	±3dB
File Format	SOR Standard File Format
Loss Analysis	4-point method /5-point method
Laser Safety Level	Class Ⅱ
Refresh Rate	3Hz (Typ.)
Data Storage	Internal storage： 100M(≤3000 curves），Saleable to 4G or 8G (optional)；External storage：4G bit

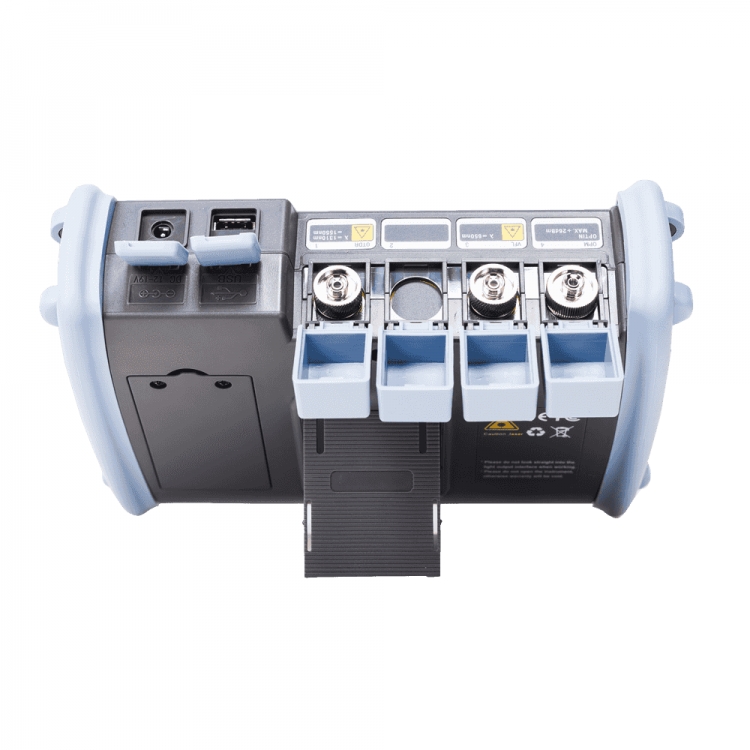

Output Interface	FC/UPC（Interchangeable SC 、ST）
Data Interface	USB 、Mini-USB 、10M/100M Ethernet Port





OPM
Wavelength range	800nm~ 1700nm
Connector	Universal FC/SC/ST
Test scope	-50dBm～+26dBm
Uncertainty	±5%
Calibration wave	850nm/980nm/1300nm/1310nm/1490nm/1550nm/1625nm/1650nm
LS
Wavelength	Consistent with OTDR output wavelength
Laser Type	FP-LD
Connector	FC/UPC（Interchangeable SC 、ST）
Output power	≥-5dBm
Stability	CW ，±0.5dB/15min（Test after 15 minutes of boot-up preheating）
VFL
Wavelength	650nm±20nm
Output power	≥10mW

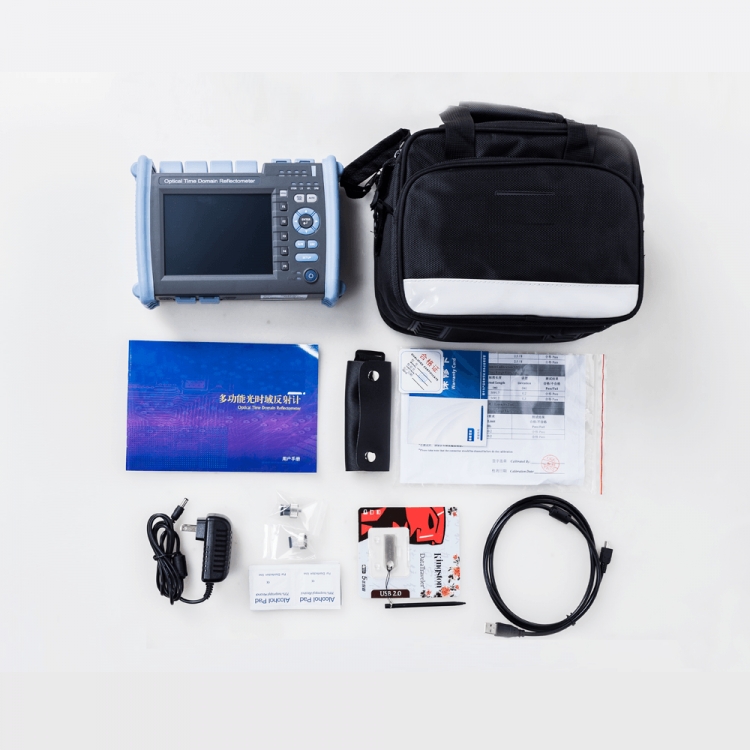

 ACTC-2000-SM2 OTDR Configuration List



NO.	Name	Quantity
1	ACTC-2000-SM2 OTDR Host	1
2	AC/DC adapter	1
3	U-disk (including analysis software, instructions)	1
4	Touch pen	1
5	Data line	1
6	OTDR SC adapter	1
7	OPM SC adapter	1
8	User's Manual	1
9	Calibration Certificate	1
10	Qualification Certificate/After-sales Service Guarantee Card	1
11	Clean cotton slices	10
12	Cortical handle	1
13	Instrument backpack (with straps)	1
