Model：CT08 Has been Discontinued In 2023.

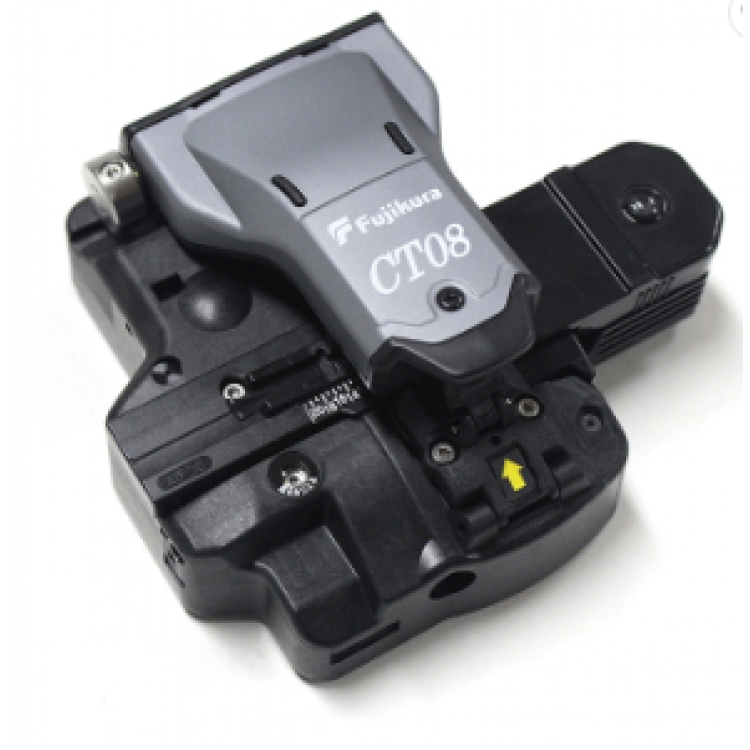

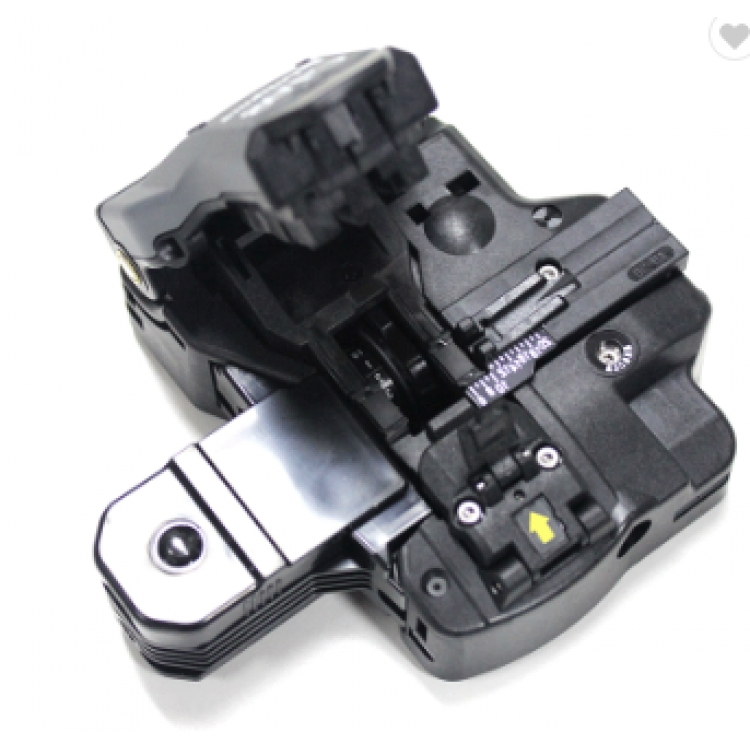

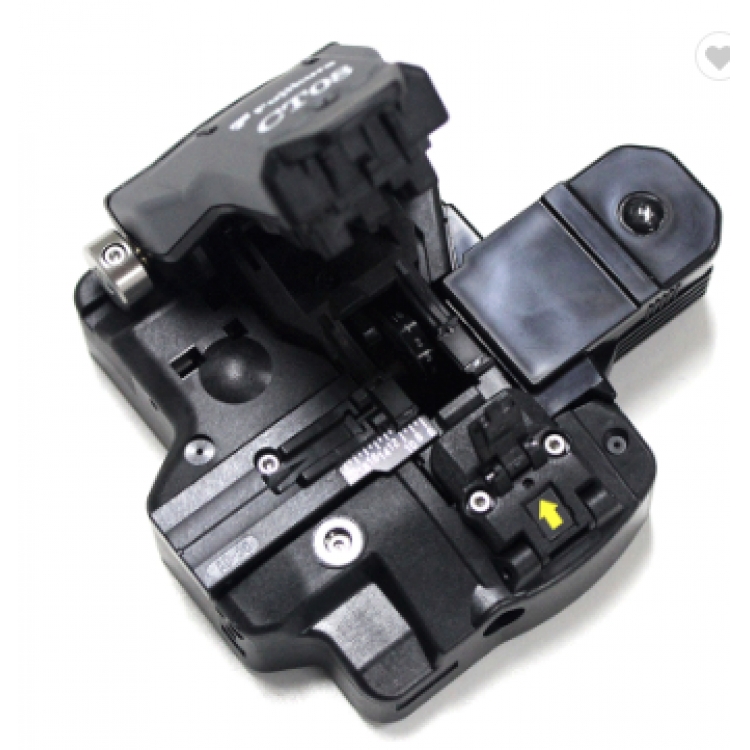

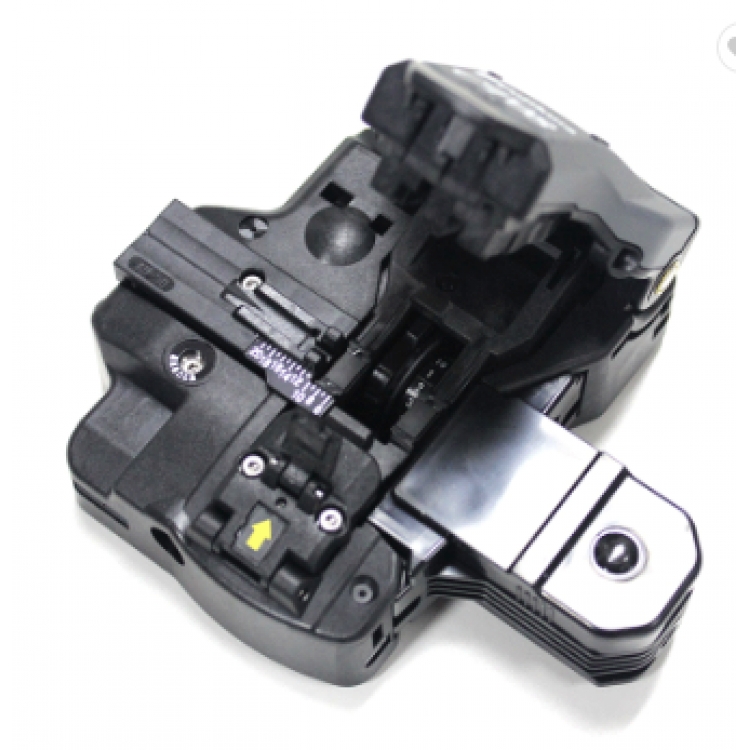

Fujikura CT08 FiberOptic Cleaver
Suitable for FTTH Dedicated for single fiber cleaving.
CT08 is the most robust cleaver. It is designed to provide easy replacement of fiber clamps and cleaving blade by customer thereby reducing maintenance cost and time.

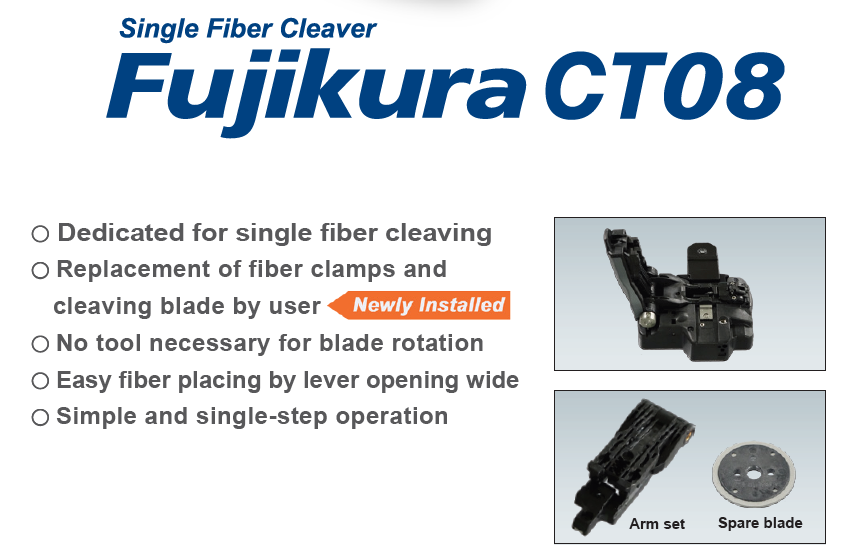

Fujikura CT08 FiberOptic CleaverFeatures
Dedicated for single fiber cleaving.
Absolute robustness
Replacement of fiber clamps and cleaving blade by user
No tool necessary for blade rotation
Blade life up to 48,000 cleaves
Easy fiber placement with wide lever opening
Simple and single-step operation

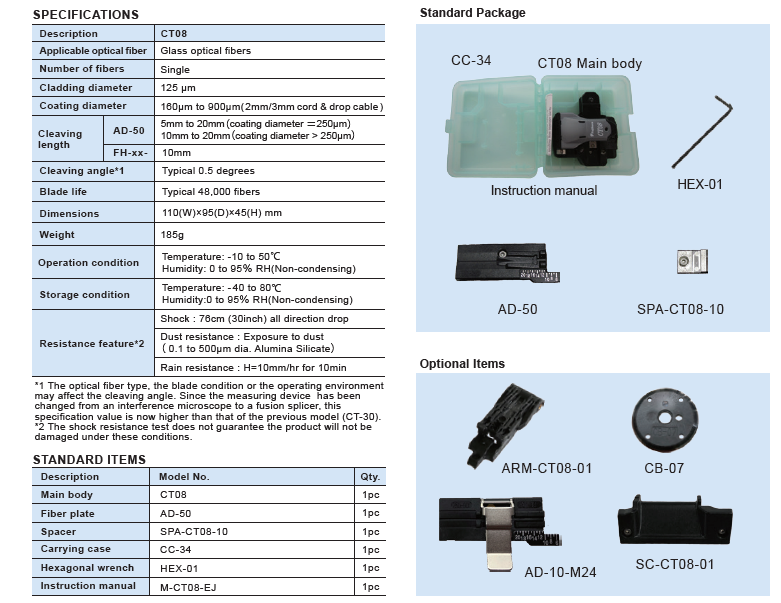

Fujikura CT08 FiberOptic CleaverSpecifications
|
Description
|
CT08
|
|
Applicable Fiber
|
Silica optical fiber
|
|
Number of fibers
|
Single
|
|
Coating Diameter
|
160 to 900μm (2/3mm cord & drop cable)
|
|
Cladding Diameter
|
125µm
|
|
Cleave Length
|
5-20mm with AD-50
10mmwith FH-xx-
|
|
Cleave Angle
|
Typical 0.5 degrees
|
|
Bladelife
|
Typical48,000 fibers
|
|
Dimensions
|
110(W) x 95(D) x 45(H)mm
|
|
Weight
|
185g
|
|
Operation condition
|
Temperature: -10 to 50℃Humidity: 0 to 95%RH(Non-condensing)
|
|
Storage condition
|
Temperature: - 40 to 80℃Humidity:0 to 95%RH(Non-condensing)
|
|
Resistance features
|
Shock: 76cm (30inch) all directions dropShock: 76cm (30inch) all directions drop
|
|
Dust resistance: Exposure to dust (0.1 to 500μm dia. Alumina Silicate)
|
|
Rain resistance: H=10mm/hr for 10min
|

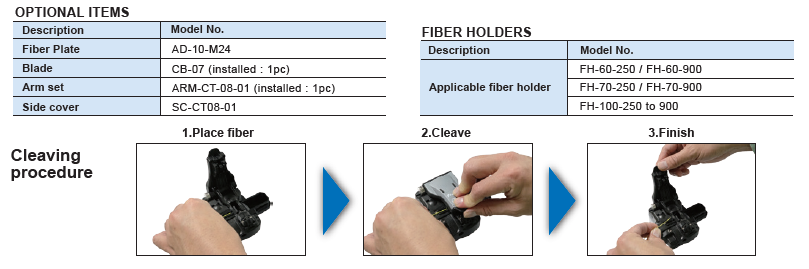

Fujikura CT08 FiberOptic CleaverStandard Package
Main body, Fiber plate, Spacer, Carrying case, Hexagonal wrench, Instruction manual
