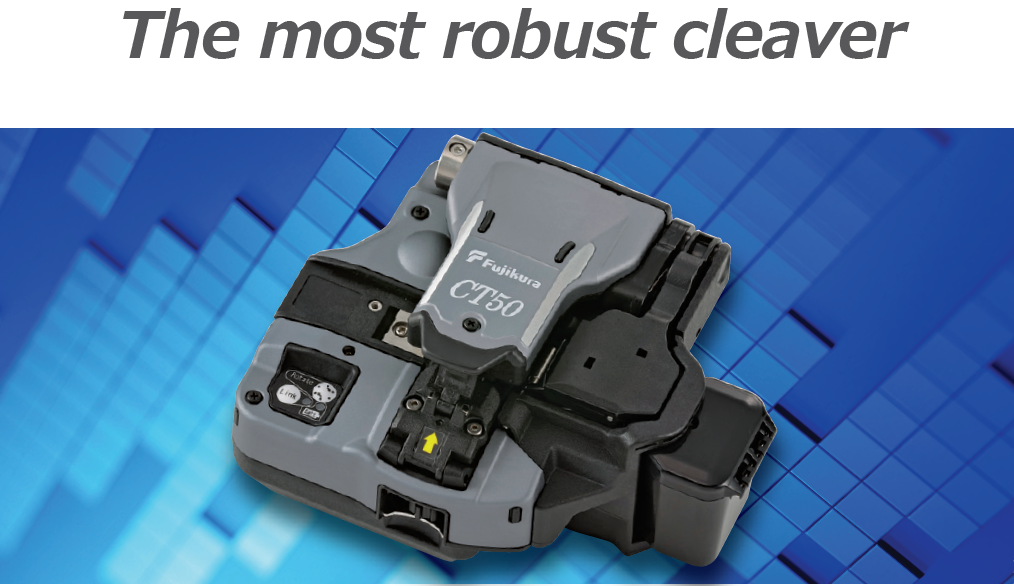

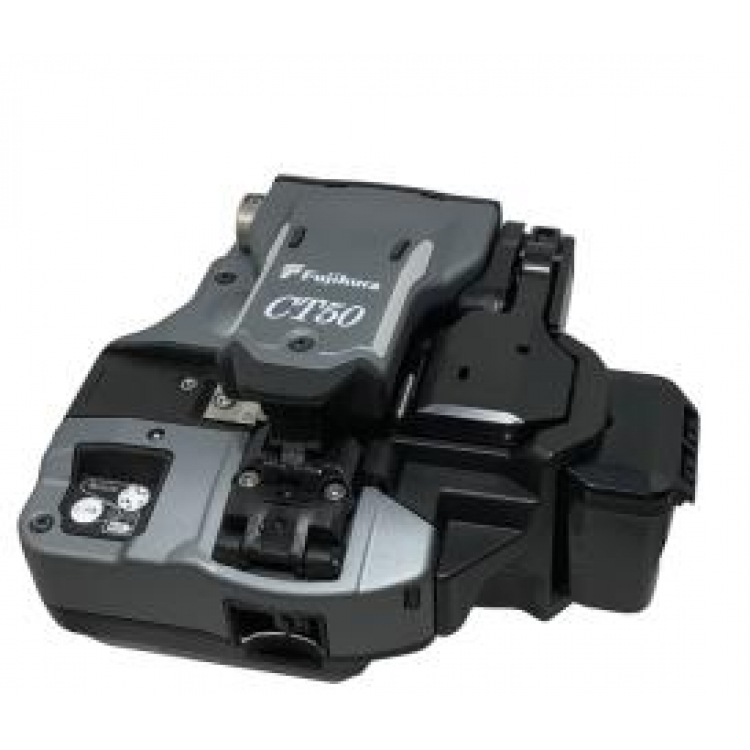

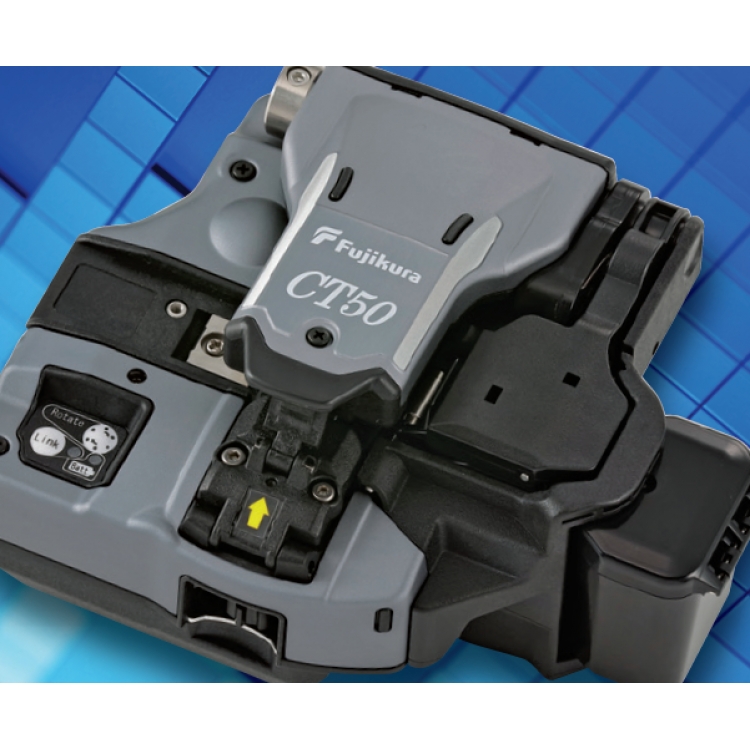

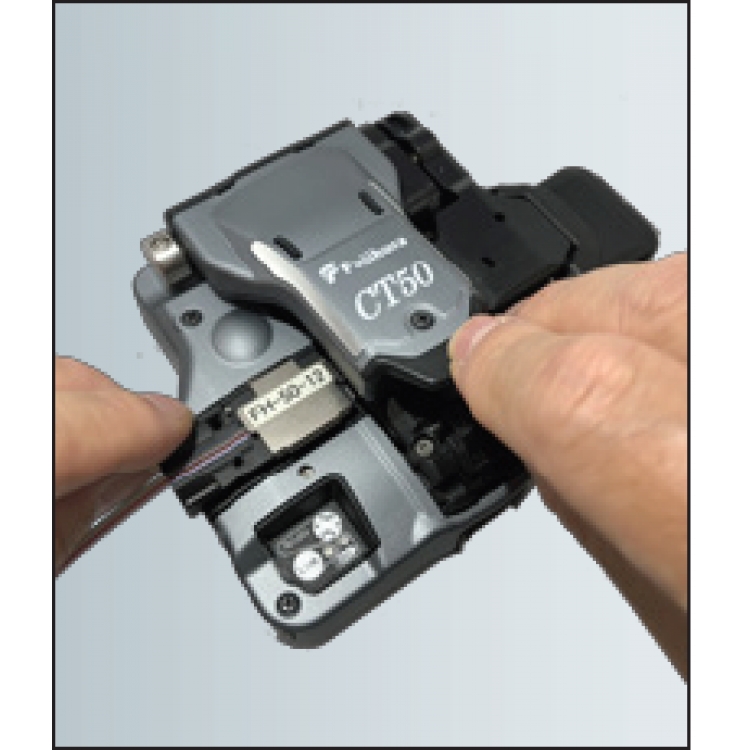

CT50 fiber optic cleaver

Features
*Applicable for up to 12-fiber cleaving
*Automatic cleaving blade rotation via wireless communication
*User replaceable fiber clamps and cleaving blade
*Blade life up to 60,000 cleaves

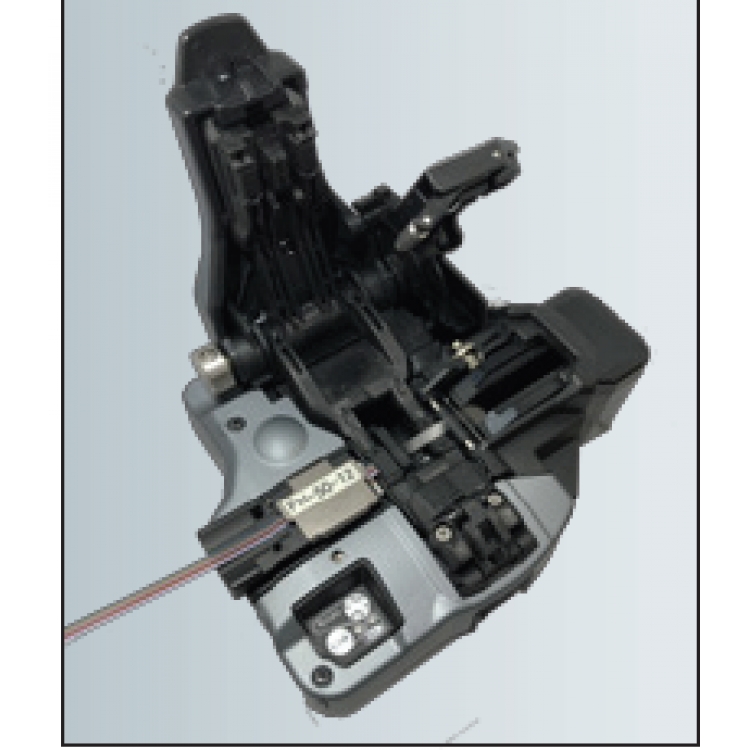

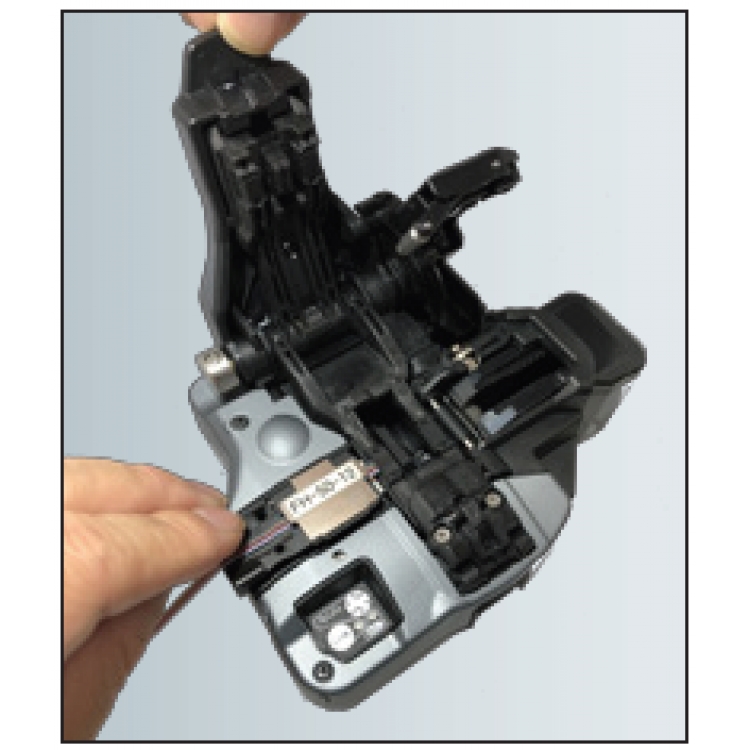

*Wide lever opening angle allows easy fiber placement
*Single-action operation including fiber scrap collection

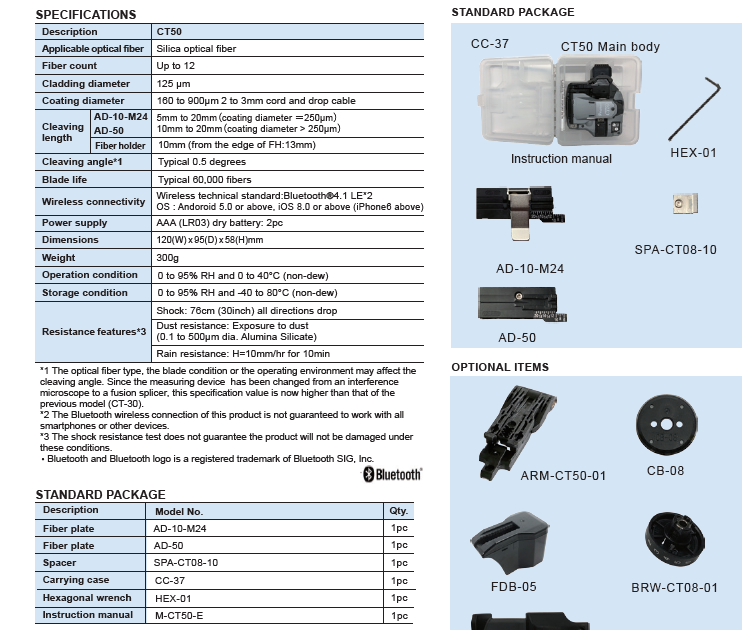

Specifications

Description	CT50
Applicable Fiber	Silica optical fiber
Fiber Count	Up to 12
Coating Diameter	160 to 900μm 2 to 3mm cord and drop cable
Cladding Diameter	125µm
Cleave Length	5-20mm with AD-10-M24 10mm using fiber holders
Cleave Angle Capability	Typical 0.5 degrees
Blade life	Typical 60,000 fibers
Wireless connectivity	Wireless technical standard:Bluetooth®4.1 LE*2 OS : Andoroid 5.0 or above, iOS 8.0 or above (iPhone6 above)
Dimensions	120(W) x 95(D) x 58(H)mm
Power supply	AAA (LR03) dry battery: 2pc
Weight	300g
Operation condition	0 to 95% RH and 0 to 40°C (non-dew)
Storage condition	0 to 95% RH and -40 to 80°C (non-dew)
Resistance features*3	Shock: 76cm (30inch) all directions dropShock: 76cm (30inch) all directions drop
	Dust resistance: Exposure to dust (0.1 to 500μm dia.    Alumina Silicate)
	Rain resistance: H=10mm/hr for 10min
