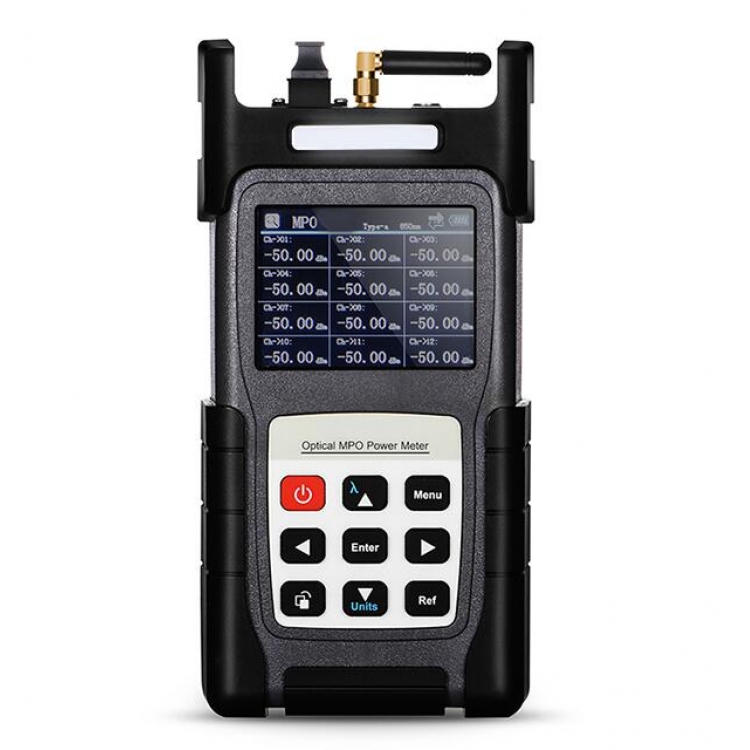

ACTC-MPO12-PM MPO POWER METER

ACTC-MPO12-PM MPO POWER METER General Information

ACTC-MPO12-PM MPO Optical Power Meter and ACTC-MPO12-LS MPO Optical Light Source is special for testing MPO fiber. At recent years, as the rapid development of data centre and cloud computing, also with rapid growth of multi fibers” (MPO) requirement. However, on the site of measurement process, traditional single channel Optical power meter with complex measurement and low credibility. Based on this, ACTC-MPO12-PM&ACTC-MPO12-LS  MPO products arises at this moment. The product can test the insertion loss of MPO fibers and polarity with only one key, And the integration of a variety of data storage, threshold analysis, data export and other applications，Compared with the traditional instrument, the test efficiency of MPO products is more than 10 times，it is the best choice for field application of MPO room test、calibration of production line、Determination of polarity.

ACTC-MPO12-PM MPO POWER METER Key benefits

12、24、Specific Channels

High Precision of color LCD display

100 history data reports

Users can customize the threshold for testing

If there is no operation in 5 mins,the screen will adjust the backlight automatically and enter the power saving mode

Switch 4 functions interface with one key (single channel optical power meter, 12 channels Optical power meter, MPO testing, Column interface）

Copy the data to the computer directly with USB interface, which is convenient for user.

User-friendly - Computer interaction interface and easy to operate

ACTC-MPO12-PM MPO POWER METER Specifications

The user can customize the threshold to test

Built-in 3500 Ma high-capacity lithium battery, work time more than 10 hours

Humanized operation shape, easy to use.

ACTC-MPO12-PM MPO POWER METER

Detector	InGaAs
Wavelength Range	850～1700nm
Calibration Wavelength	850、1300nm or1310、1550nm
Optical Power Meter Range	+3～-50 dBm
Insertion Loss Accuracy	< 0.2s/Channels
Resolution	0.01dB
Linearity	±0.2dB (+5～-50dBm)
System Control	USB
Interface Type	SM/MM MPO/PC 12/24 Female connetor
Working Temperature	-5℃～+40℃
Continuons Working Hours	> 10H
Channels	12、24
Outline Dimension	220 x 110 x 60mm
Weight	850g
