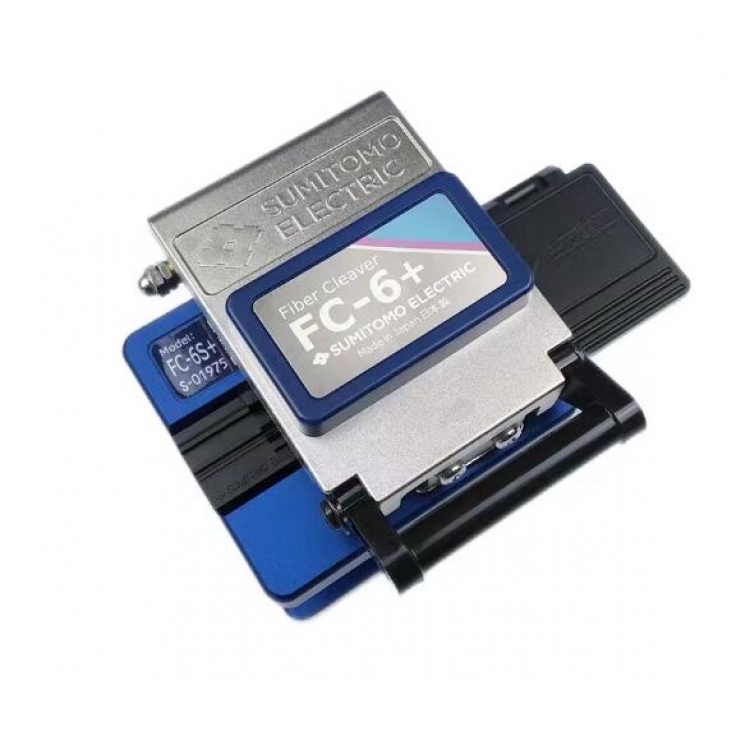

FC-6S+ SUMITOMO Fiber Optical Cleaver

 FC-6S+ Fibre Cleaver Descriptions:

The FC-6S+high-precision fiber cutting Cleaver has been upgraded with an automatic return function, which can be used for precision cutting of single core optical fibers. It adopts a three in one fixture (supporting bare fiber, tail fiber, and ribbon fiber cutting), and is suitable for 250 µ m coated optical fibers and 900 µ m coated optical fibers. The cutting angle is small and the operation is simple.

FC-6S+ Fibre Cleaver Features:

* One-Action Cleaver for Seamless Operation
* Compatible with Single Fiber Adapter and Universal Fiber Holders
* Auto-Rotating Blade for Stable Cleaving
* Blade Auto Return, Seamless operation, maximize work efficiency
* High quality blade ensures high quality cleaves
* Our expert metal working realize the consistent quality over 60,000 fibers

* Automatic off-cut collection

FC-6S+ Fibre Cleaver Specifications

Model	FC-6S+
Fiber Types	All fiber types
Fiber Count	Single to 12 ribbon fiber
Clad Diameter	125 µm
Coating Diameter	Single fiber: 250 to 900 µm Ribbon fiber: 300 to 400 µm (thickness)
Cleave Length	Single fiber: 5 to 20 mm Ribbon fiber: 10 mm
Blade Life	60000 fibers
Dimensions	100*81*63MM
Weight	390 g
