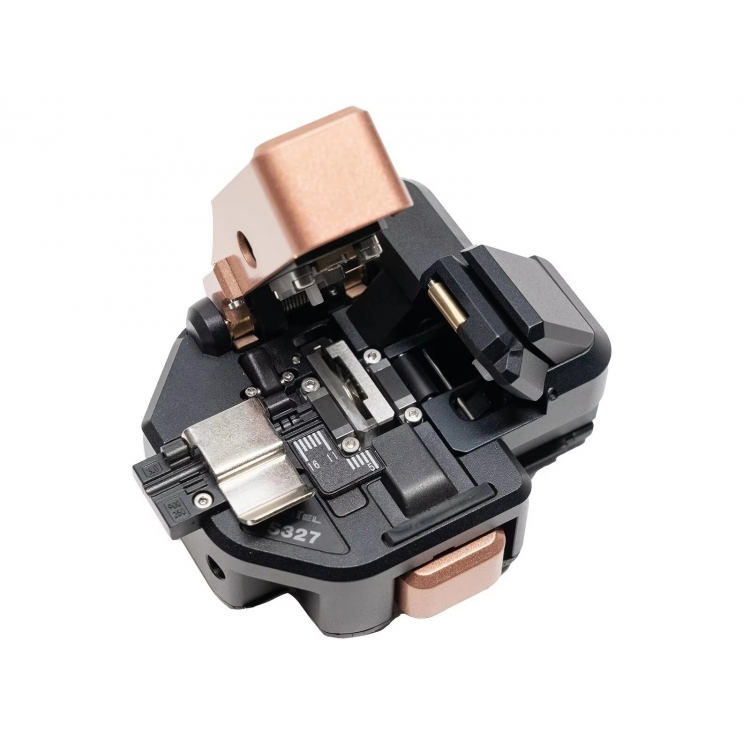

S327 Fitel optic fiber cleaver

S327 Fitel optic fiber cleaver Products Description

The Fitel S327 high precision fiber optic cleaver, ergonomically designed for a range of Telecoms and Production applications. This one-action cleaver provides seamless and repeatable cleaving for both single and ribbon fiber. Capable of 65,000 cleaves the S327 offers the longest blade life in the market. Easy blade replacement can be done in 1 minute with no special tools and needs no other adjustments. The small footprint allows handheld operation or traditional desktop use and fiber ends are automatically collected in the waste bin.

S327 Fitel optic fiber cleaver Key Features

The most durable blade on the market (65000 cleaves)

One-click Blade Rotation

Quickly Replaceable Blade (defined by user)

Versatile - Handheld or Desktop

Switchable opening angle depending on use

Consistent cleaving quality



S327 Fitel optic fiber cleaver Specification:

Fiber Meterial	Silica glass
Fiber Count	Single;  Ribbon fiber 250 μm: 2~12 fiber ribbon;  200 μm: 2~16 fiber ribbon
Cladding Diameter	125μm
Coating Diameter	Single: 0.2~3.0mm;  Ribbon fiber: 0.20~0.40 mmx0.25 mm pitch  0.20~0. 40 mmx0.20 mm pitch
Cleaved Length	Single fiber: 3mm; Tape: 10mm
Typical Cleaved Angle	Less than 0.5°
Typical Blade Life	65,000 fiber (2,500 fiber per cutting blade position)
Type of Offcut Bin	Automatic
