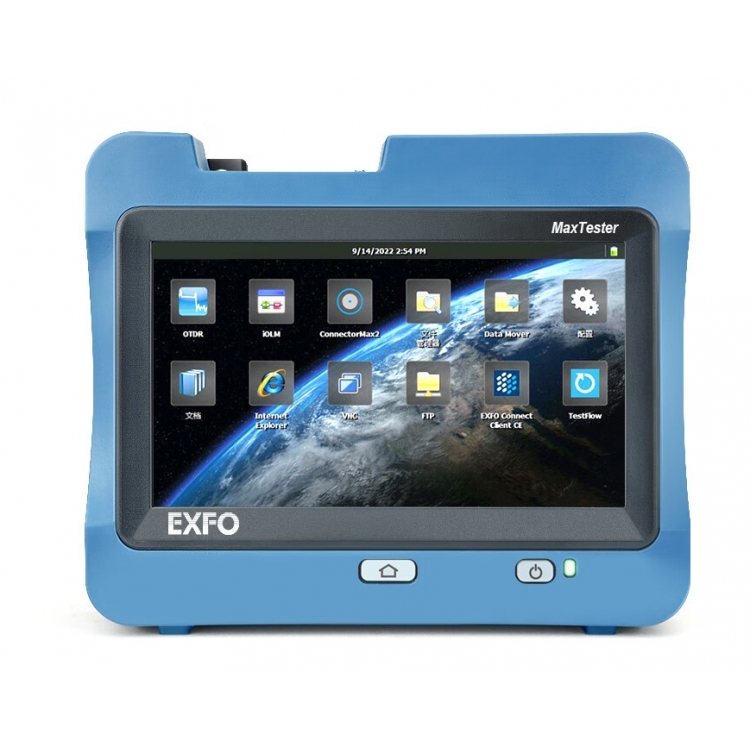

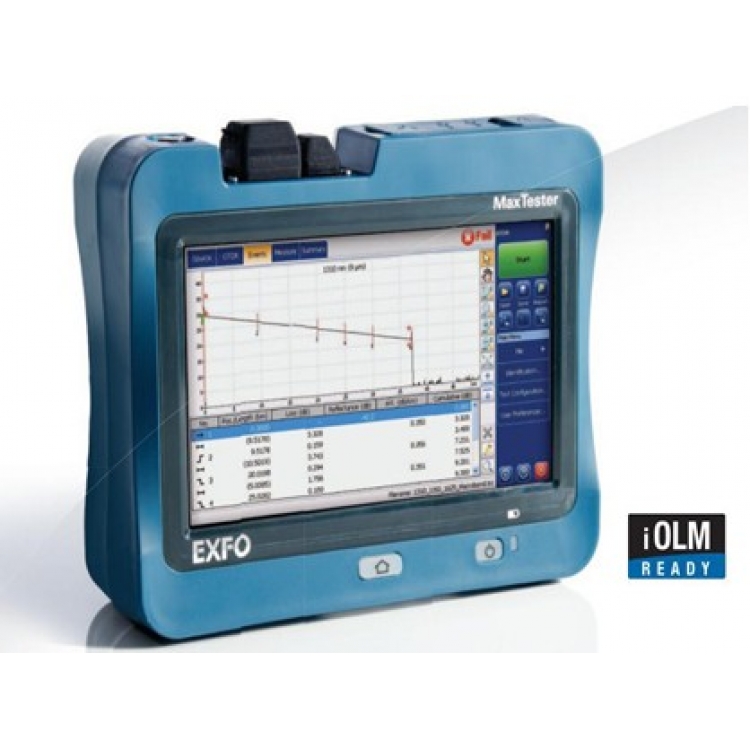

MaxTester 715D EXFO OTDR

MaxTester 715D EXFO OTDR Description

The MaxTester 700D OTDR Series comes with a Swap-Out connector which can easily be changed, as and when needed, without having to

send the test unit to a service center. This ensures optimal performance over time without undue maintenance costs and downtime.
The OTDR's optical connector health can be checked with an onboard diagnostic tool to replace the connector only when necessary.Was your OTDR connector damaged when connecting a UPC cable to the APC port on your device? This no longer needs to cause downtime
by sending the device back for repair. Thanks to EXFO’s Swap-Out connectors, you can now check connector health instantly and
replace your connector within seconds if needed–directly from the field!

MaxTester 715D EXFO OTDR Key features

*Rugged, handy, lightweight, tablet-inspired design built for outside plant

*7-inch, outdoor-enhanced touchscreen—the biggest in the handheld industry

*12-hour autonomy

*Dead zones: EDZ 0.9 m, ADZ 3.6 m

*Dynamic range up to 32/30/30 dB

* Swap-Out connector, replaceable whenever necessary for optimal performance over time without undue service cost

MaxTester 715D EXFO OTDR Specification:

TECHNICAL SPECIFICATIONS	MAXTESTER 715D
Display	Two USB 2.0 ports RJ-45 LAN 10/100 Mbit/s
Storage	2 GB internal memory (20 000 OTDR traces, typical)
Batteries	Rechargeable lithium-polymer battery 12 hours of operation as per Telcordia (Bellcore) TR-NWT-001138
Power supply	Power supply AC/DC adapter, input 100-240 VAC, 50-60 Hz, 9-16 V DCIN 15 Watts minimum
Wavelength	1310/1550nm
Dynamic range	Dynamic range up to 32 dB
Event dead zone	0.9m
Attenuation dead zone	3.6M
Distance range	0.1 to 160 km
Pulse width	5 ns to 20 us
Linearity	±0.05dB
Loss threshold	0.01dB
Loss resolution	0.001dB
Sampling resolution	0.04 to 5m
Sampling points	Up to 256 000
Distance uncertainty (m)	±(0.75 + 0.005 % x distance + sampling resolution)
Measurement time	User-defined
Reflectance accuracy	±2(dB)
Typical real-time refresh	3(Hz)
Size (H x W x D) & Weight	155 mm x 200 mm x 68 mm, 1.29 kg (with battery)
Temperature Operating	-10 °C to 50 °C (14 °F to 122 °F)
Temperature Storage	-40 °C to 70 °C (-40 °F to 158 °F) a
Relative humidity	0 % to 95 % noncondensing
